BKHD 1356-TI4

Optional Processor

Intel Core i3-6100U - 2 Cores 4 Threads

Intel Core i5-6200U - 2 Cores 4 Threads

Related Attachments (Click to download)

Product Specifications

BIOS file

Product Features:

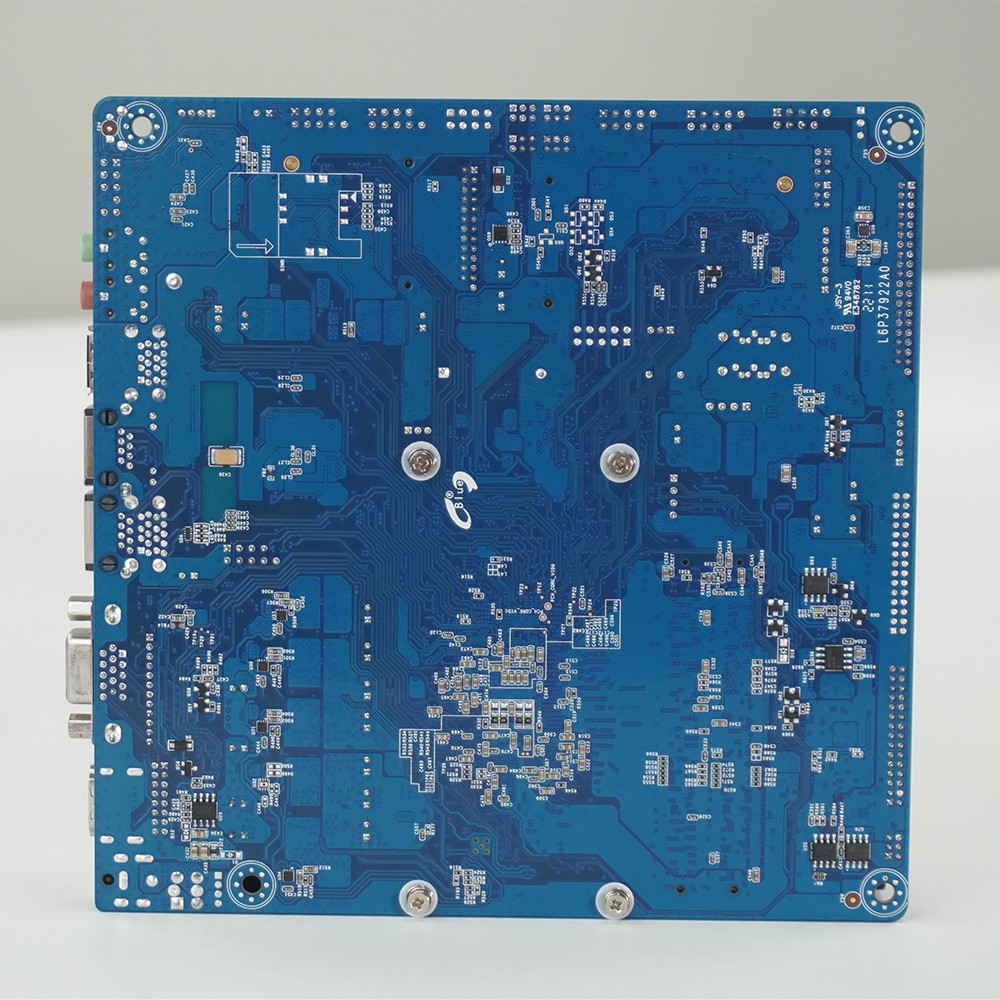

The BKHD 1356-TI4 motherboard is a full featured embedded motherboard suitable for a wide range of industrial and commercial applications.
Processor: Built-in 6th/7th/8th generation Intel Core i3/i5/i7 processors are optional, providing powerful computing power to handle complex tasks.
Size: Mini ITX design, compact and lightweight, easy to install, can be installed in touch screens, racks and desktop enclosures, suitable for a wide range of industrial and commercial application scenarios.
Ethernet connectivity: Provides Gigabit Ethernet connectivity, supporting high-speed network transmission, suitable for applications such as industrial control, embedded terminals and edge gateways.
Memory slot: Dual channel DDR4 memory supports up to 32GB, with excellent performance and fast response time.
Communication Interface: Onboard COM pin, up to 6 DB9 COM ports can be expanded, up to 2 RS485 or 6 RS232 can be selected, providing rich interface options for industrial communication.
Expansion slot: Provides 1 mPCIe expansion slot for adding wireless network modules to increase system flexibility.

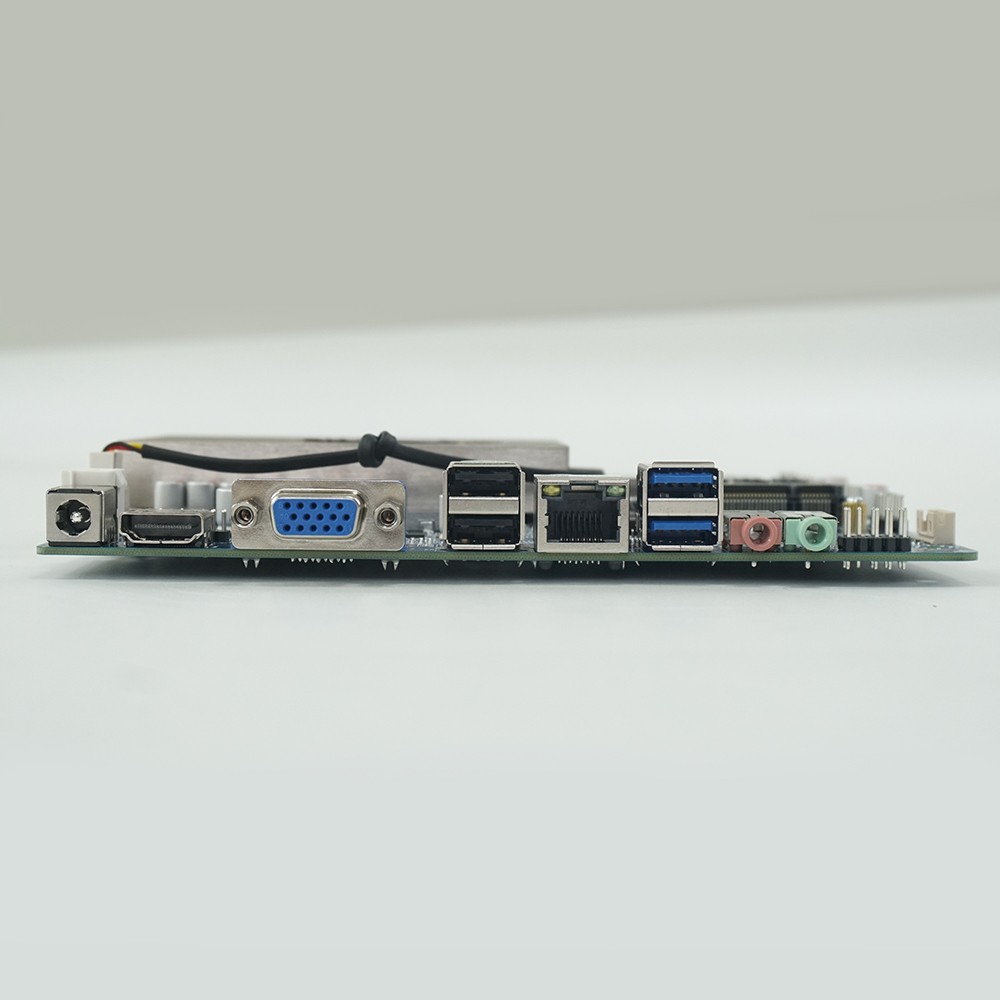

Video output: Provides 1 HD interface and 1 VGA interface. Onboard 1 eDP or LVDS (choose one), supports synchronous/asynchronous triple display, suitable for various display requirements. Suitable for commercial display, touch screen and other scenarios, providing high-definition output quality.
Storage Interface: Provides 1 mSATA and 2 SATA storage interfaces, offering flexible data storage methods to meet various storage needs.
USB Interface: Provides 2 USB3.0 interfaces and F_USB interfaces, supports up to 6 USB2.0 expansion ports and provides a rich peripheral interface for the device.
