BKHD 1168-TI3

Optional Processor

Intel Core i3-4005U - 2 Cores 4 Threads

Intel Core i5-4200U - 2 Cores 4 Threads

Related Attachments (Click to download)

Product Specifications

BIOS file

Product Features:

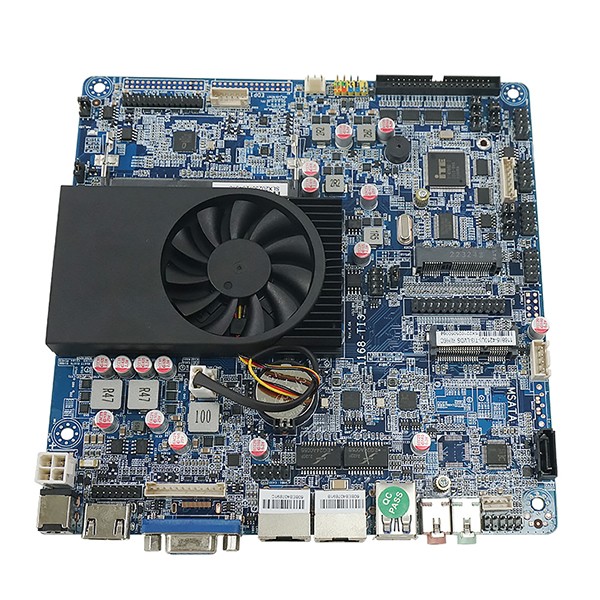

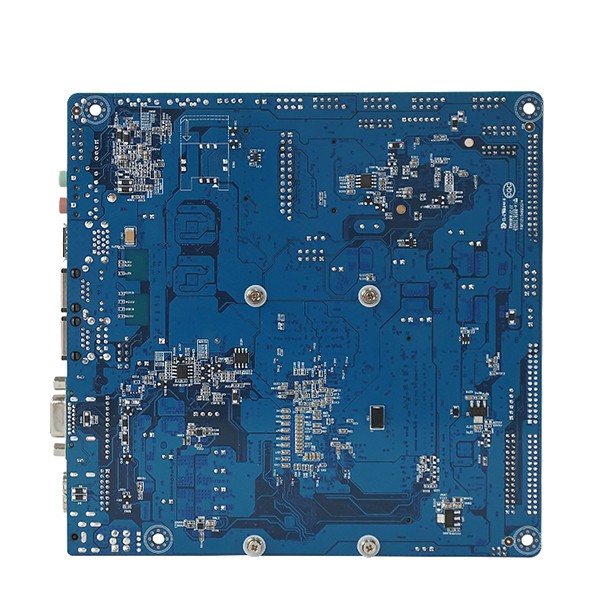

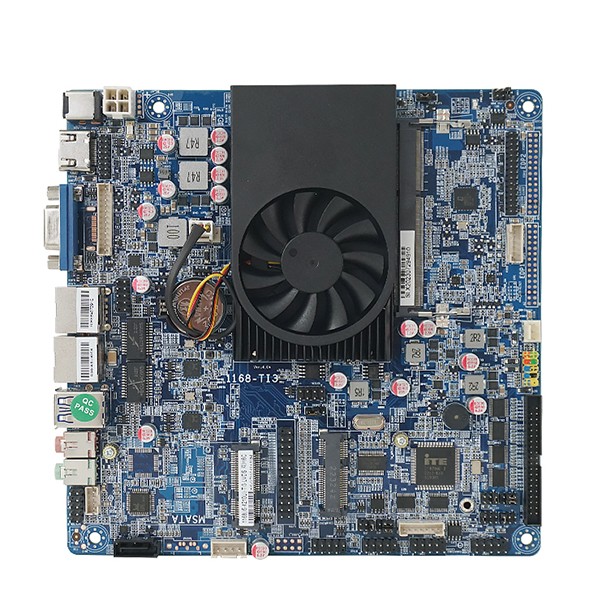

The BKHD 1168-TI3 is an industrial x86 motherboard with a wide range of features and interfaces, suitable for various application scenarios.
Processor: Built-in 4th generation Intel Core i3, i5 low voltage processor, providing sufficient computing power. Suitable for 7x24 hours continuous operation.
Size: Mini ITX design, compact and lightweight, easy to install. Can be installed on touch screens, rackmount chassis, desktop chassis, suitable for a variety of different scenarios.
Ethernet Port: Provides 2 Ethernet ports, supports high-speed network transmission, suitable for industrial control or embedded terminals, edge gateways and other scenarios.
Communication Interface: Onboard COM pins, expandable to 6 DB9 COM ports. 2 of them can select RS485 or RS232 interfaces, providing rich interface options for industrial communication.
Expansion slot: Provides 1 mPCIe expansion slot, can add wireless network module to increase system flexibility.
Video output: Provides 1 HD interface and 1 VGA interface. Onboard 1 eDP or LVDS (choose one), supports synchronous/asynchronous triple display, suitable for various display needs. Suitable for commercial display, touch screen and other scenarios, providing high-definition output quality.
Storage Interface: Provides 1 Mini-PCIe and 1 SATA storage interface, supporting flexible data storage methods.
USB Interface: Provides 2 USB3.0 interfaces (single network port can support 2 USB3.0 and 2 USB2.0) and F_USB header, supports up to 6 USB2.0 expansion ports, providing a rich peripheral interface for the device.
