Optional Processor

Model: N100 CPU - 4 Cores 4 Threads

Related Attachments (Click to download)

Product Specifications

BIOS file

Product Features:

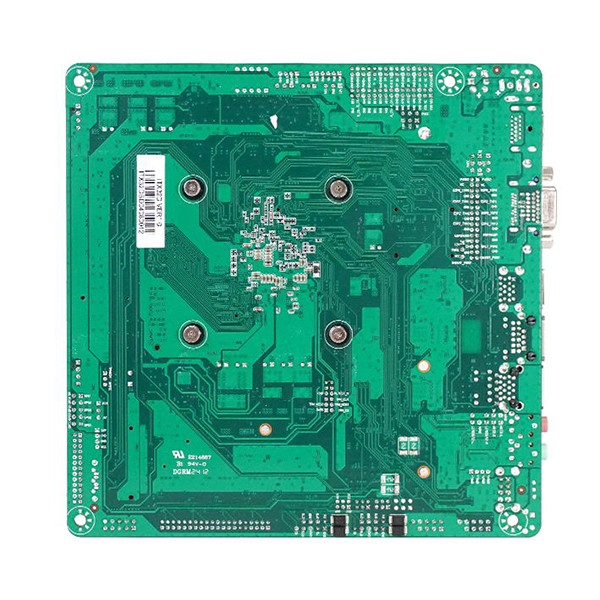

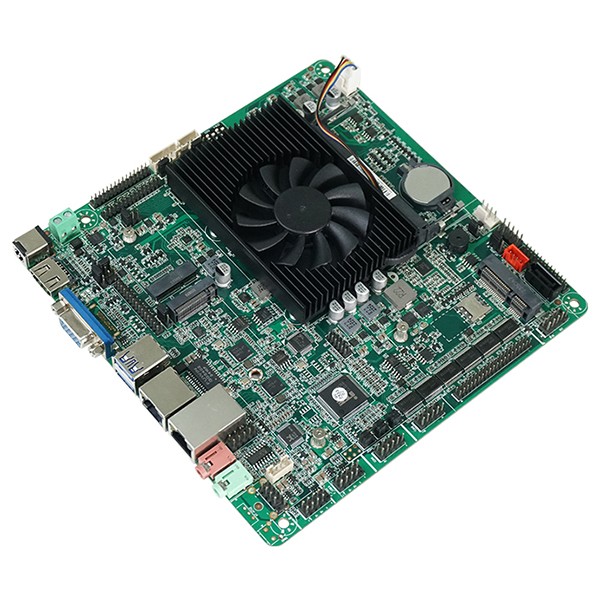

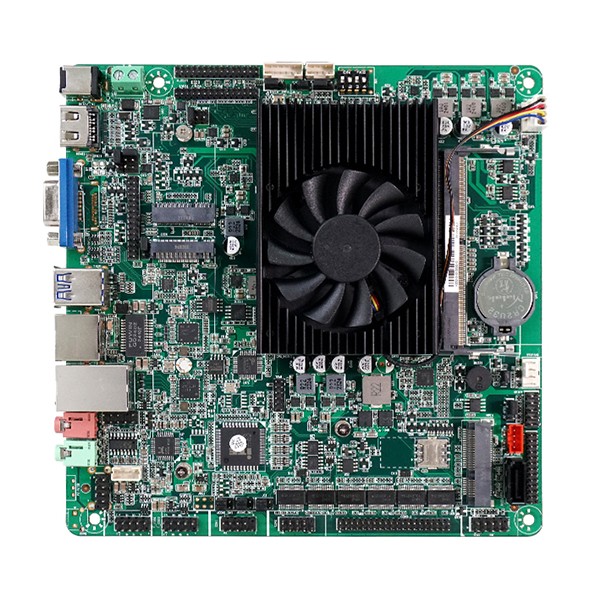

The BKHD 1264TI4 is an industrial x86 motherboard with a wide range of features and interfaces to suit a variety of application scenarios.
Processor: The built-in Intel N100 4-core, 4-thread processor provides ample computing power. The thermal design power (TDP) of the CPU is only 6W, suitable for 7x24 hours long term operation.
Size: Mini ITX design, compact and lightweight, easy to install. It can be installed on touch screens, rackmount chassis, desktop chassis, suitable for a variety of different scenarios.
Ethernet Port: Provides 2 Ethernet ports, supports high-speed network transmission, suitable for industrial control or embedded terminals, edge gateways and other scenarios.
Communication Interface: Onboard COM pin, expandable up to 6 DB9 COM ports. Up to 2 RS485 or 6 RS232 interfaces can be selected, providing a wide choice of interfaces for industrial communications.
Expandable slot: Provides 1 mPCIe and 1 M.2 Key E expansion slot, can add expansion boards to increase system flexibility.
Video output: Provides 1 HD interface and 1 VGA interface. Onboard 1 eDP or LVDS (choose one), supports synchronous/asynchronous triple display, suitable for various display needs. Suitable for commercial display, touch screen and other scenarios, providing high-definition output quality.
Storage Interface: Provides 1 M.2 Key M (supports SATA/PCIe protocol) and 1 SATA3 storage interface, supporting flexible data storage methods.
USB Interface: Provides 2 USB3.0 interfaces (single network port can support 4 USB3.0) and F_USB pins, supports up to 6 USB2.0 expansion ports, providing a rich peripheral interface for the device.
