G31X 1264 4L2C

Brand BKHD
Model G31X 1264 4L2C
Chipset BKHD-1264-12-4L2C
Network port 4*Intel i226 2.5G
Memory 1*DDR4 SO-DIMM
Storage 1*NVMe/1*SATA
Expandable 1*mPCIe for WiFi/BT/4G module
Video output 1*DP/1*HD
Power Adapter DC 12V-4A

Optional Processor

Model: N100

Cores: 4

Threads: 4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

The BKHD G31X 1264 4L2C features high performance memory support, serial port and multi-monitor support, efficient network interface and flexible storage options, making it an ideal choice for enterprise networking, edge computing, IoT and industrial control applications.

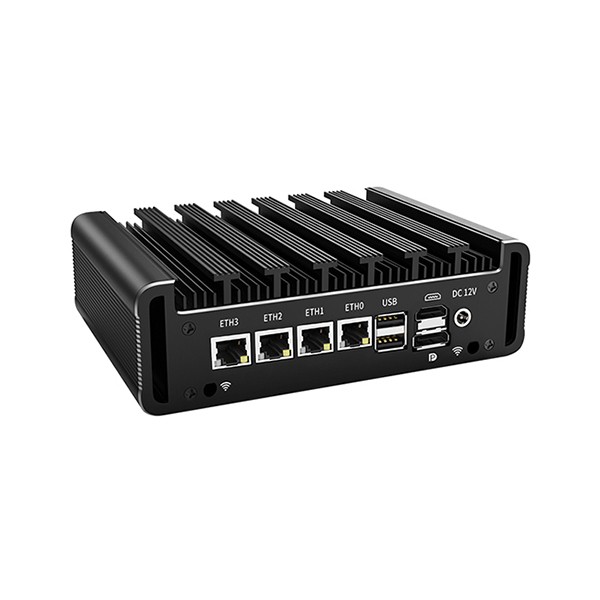

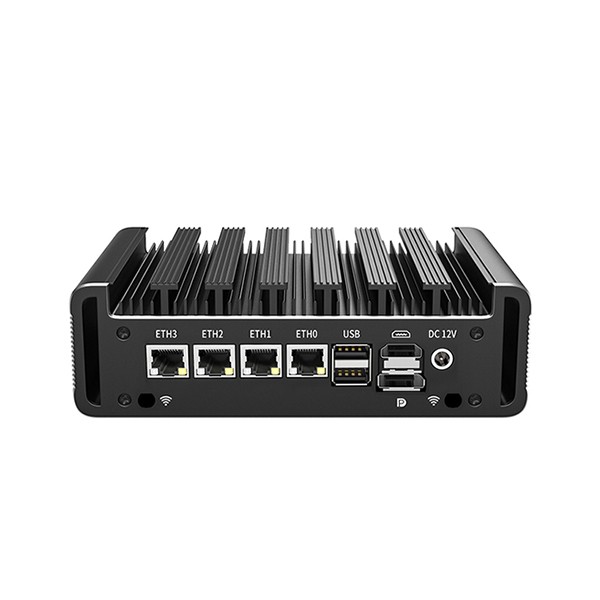

Network interface: 4 Intel i226 2.5G Ethernet ports. Supports high-bandwidth, low-latency network connections suitable for enterprise and data-intensive applications.

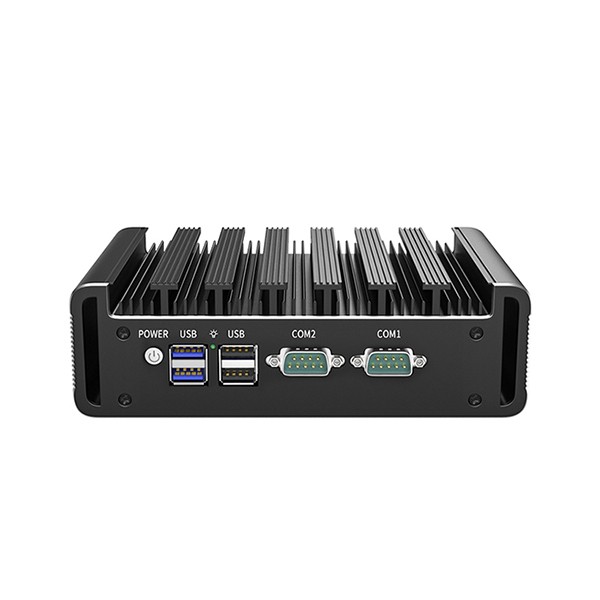

Serial port: 2 DB9 COM ports, widely used for industrial control and serial device connectivity.
Memory support: 1 DDR4 SO-DIMM slot, supports high-performance DDR4 memory to ensure smooth data processing.
Storage support: 1 NVMe interface for high-speed solid state drives; 1 SATA interface for mechanical or solid state drives. Provides flexible storage options to meet high-speed, high-capacity storage needs
Expansion slot: 1 mPCIe slot that can be used to add WiFi, Bluetooth or 4G modules. Provides flexible expansion options for wireless connectivity to ensure efficient communication between IoT devices.
Video outputs: 1 DP and 1 HD, supporting multiple video output options, suitable for multi-monitor environments such as surveillance systems and multimedia presentations.
Power Adapter: DC 12V power adapter, provides a stable power supply to ensure normal operation of the unit.
