G30W N100 4L

Optional Processor

Intel N100 Cores: 4 Threads: 4

Related Attachments (Click to download)

Product Manual

Motherboard Specifications

BIOS file

Product Features:

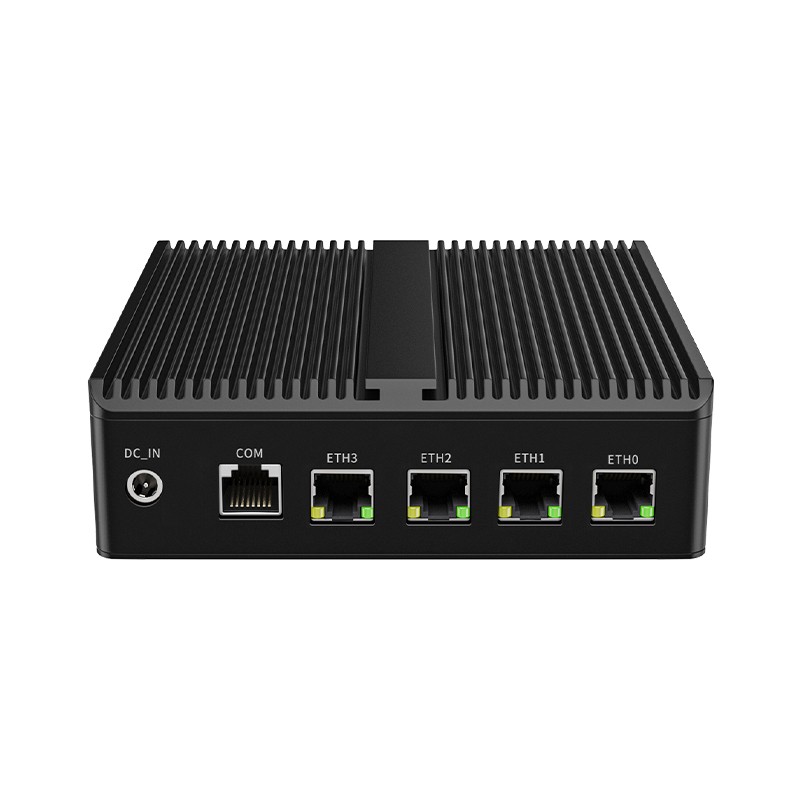

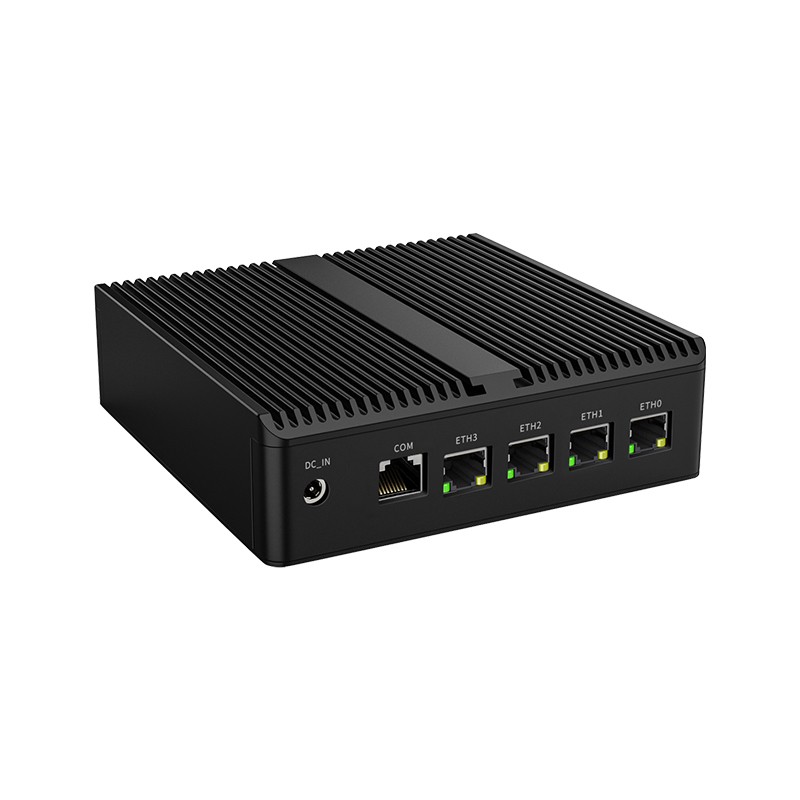

The BKHD G30W N100 4L is a multi-port fanless mini host that can be used in edge computing, industrial automation, networking equipment, embedded systems, home media servers, and other application scenarios.
Equipped with an Intel N100 processor with 4 cores and 4 threads and a TDP of only 6W, it provides high-performance and low-power computing capabilities suitable for various lightweight computing tasks.
Equipped with 4* Intel i226 chips, each RJ45 network port supports up to 2.5Gbps network bandwidth, suitable for application scenarios that require high-speed network connectivity.
Supports 1*DDR5 SO-DIMM memory, up to 16GB, providing higher bandwidth, lower latency, and improved overall system performance.
Supports 1*High-speed NVMe 2280 SSD and 1*SATA 6Gb/s storage device, providing flexible storage solutions to meet different storage needs.
Plenty of expansion slots, providing 1*mPCIe, which can expand WiFi, BT/4G or other mPCIe modules. 1*M.2 Key B 3052 slot, expandable WiFi, BT, 4G/5G modules, adapt to a variety of network environments and application scenarios.

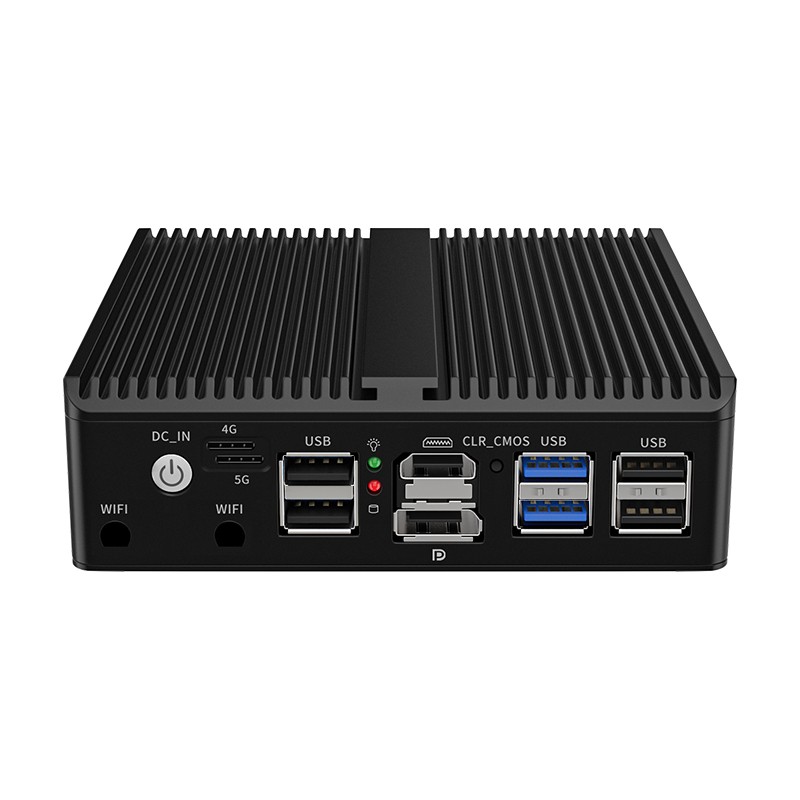

Provides 1*DP and 1*HD video output interface, supports multi-monitor configuration, suitable for application scenarios requiring high-definition display.

Application scenarios:

Router or Firewall: Efficient network connectivity and flexible expansion options make it suitable as a router or firewall device for home and small offices, providing secure and stable network services.
Data storage and backup: Multiple storage options and flexible expansion capabilities make it a data storage and backup solution for home and small offices.
File Sharing Server: High-speed network connectivity and high-capacity storage support concurrent multi-user access and file sharing.
Edge computing: With efficient, low-power processors and multiple I/O interfaces, it can be used as an IoT gateway device to support local data processing and storage.
Data Acquisition Terminal: A variety of expansion modules can be added to achieve efficient data transmission as a sensor and data acquisition device.
Embedded System: Rich expansion options and flexible configuration make it suitable as the core host of various embedded systems, supporting customized application requirements.
Smart Home Gateway: Efficient processing power and multiple network connection options make it suitable as the core gateway of smart home, realizing the interconnection of smart home devices.
