BKHD 1449-TI4

Optional Processor

Intel Core i3-1115G4 - 2 Cores 4 Threads

Intel Core i5-1135G7 - 4 Cores 8 Threads

Intel Core i7-1165G7 - 4 Cores 8 Threads

Related Attachments (Click to download)

Product Specifications

BIOS file

Product Features:

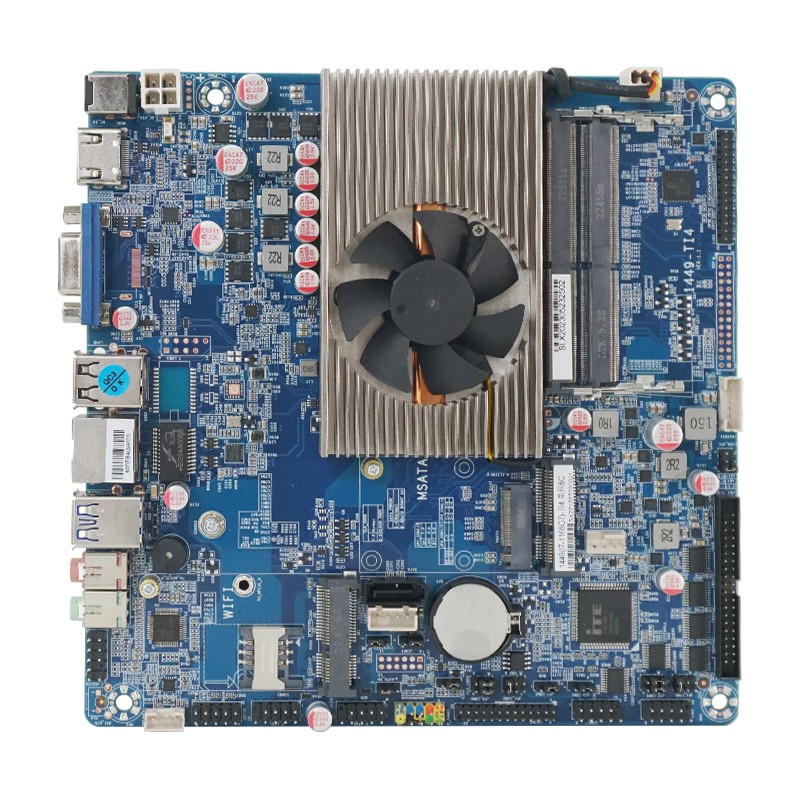

The BKHD 1449-TI4 is a high performance x86 motherboard designed for industrial applications. It has a wide range of functions and interfaces and is suitable for various application scenarios.
Processor: The integrated 11th generation Intel Core i3/i5/i7 processor is optional. It provides powerful computing power and is suitable for handling complex tasks.

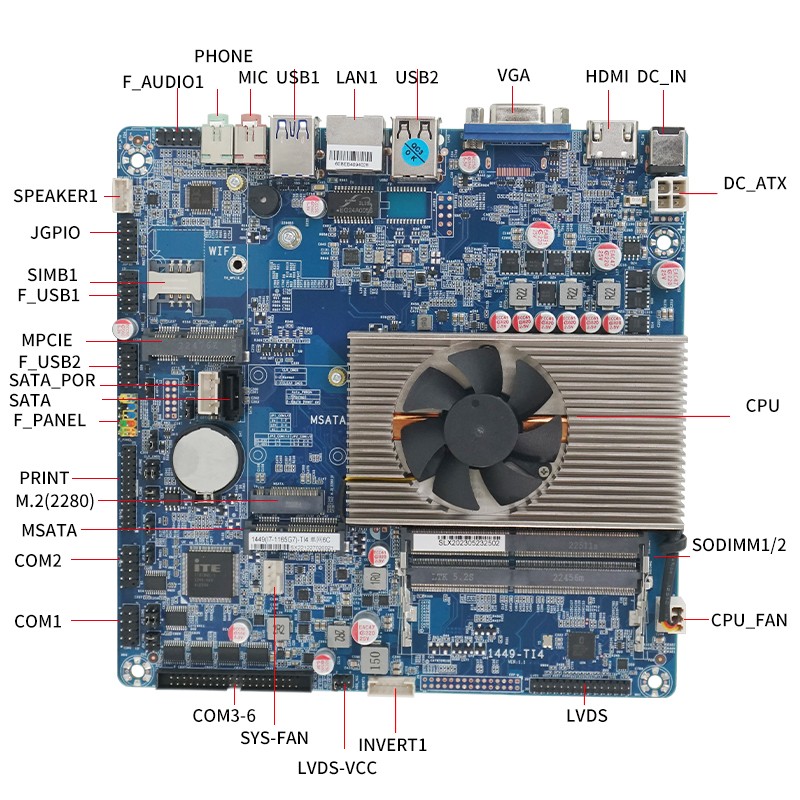

Size: Mini ITX design, compact and lightweight, easy to install. It can be installed in touch screens, rackmount and desktop enclosures, adapting to a wide range of industrial and commercial application scenarios.
Ethernet connectivity: Provides 2 Gigabit Ethernet ports, supporting high-speed network transmission, suitable for applications such as industrial control, embedded terminals and edge gateways.
Memory slot: Dual channel DDR4 memory supports up to 64GB for excellent performance and responsiveness.
Communication Interface: Onboard COM pin, up to 6 DB9 COM ports can be expanded, up to 2 RS485 or 6 RS232 can be selected, providing a wide choice of interfaces for industrial communications.
Expansion slot: Provides 1 mPCIe expansion slot for adding a wireless network module to increase system flexibility.

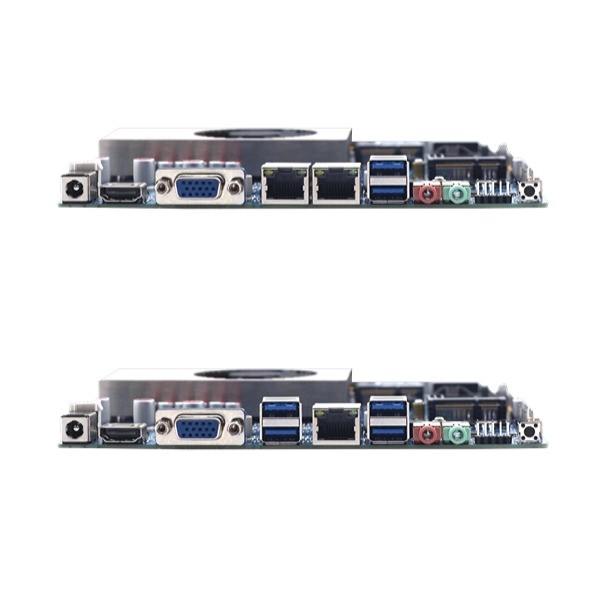

Video output: Provides 1 HD interface and 1 VGA interface. Onboard 1 eDP or LVDS (choose one), supports synchronous/asynchronous triple display, suitable for various display requirements. Suitable for commercial display, touch screen and other scenarios, providing high-definition output quality.
Storage Interface: 1 M.2 NVMe, 1 mSATA and 1 SATA storage interface, providing flexible data storage methods to meet various storage needs.
USB Interface: Provides 2 USB3.0 interfaces (single network port can support 4 USB3.0) and F_USB header, supports up to 6 USB2.0 expansion ports, and provides rich peripheral interfaces for the device.
