1151NP 17 4L

Related Attachments (Click to download)

Motherboard Specifications

BIOS file

Product Features:

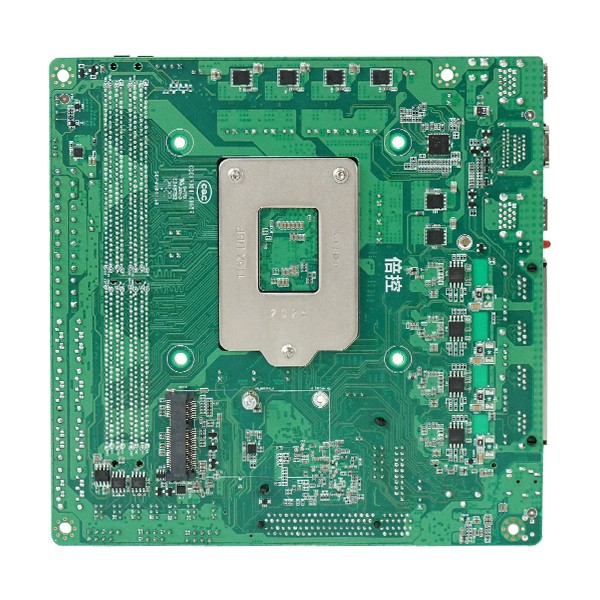

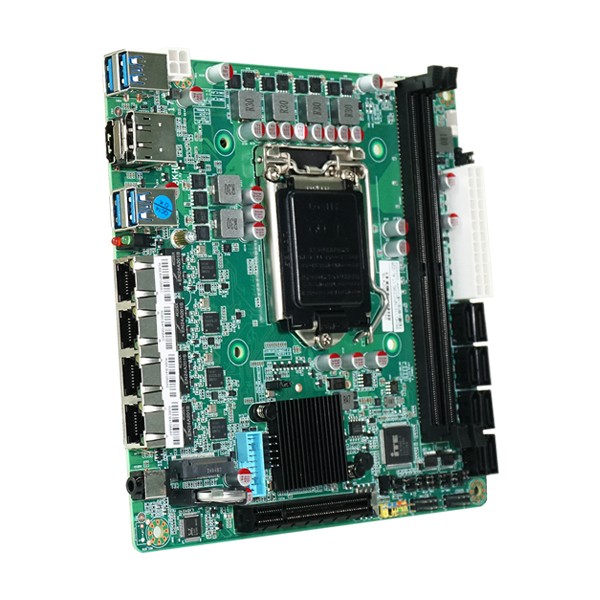

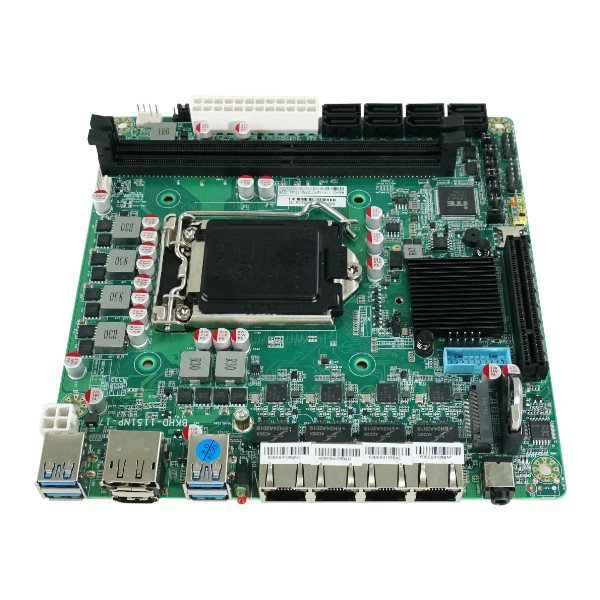

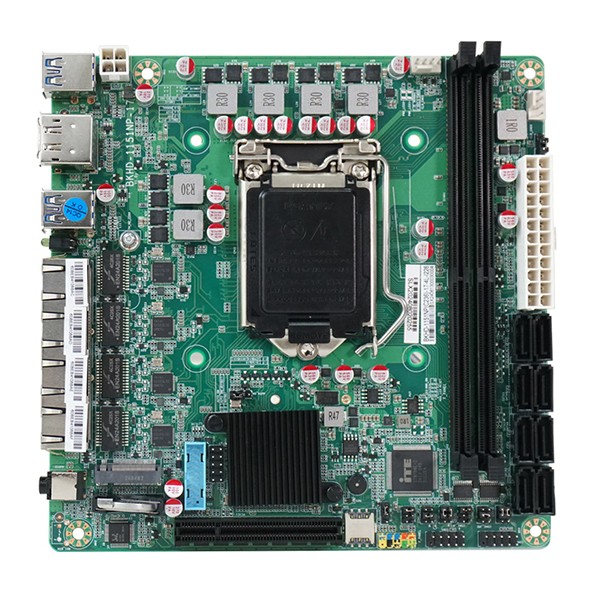

BKHD 1151NP-17 4L is a Mini ITX form factor motherboard.

It supports LGA1151 architecture, 6th to 9th generation Intel Celeron/Pentium/Core processors, and can flexibly select the appropriate processor as needed to meet the computing needs of different tasks.

Equipped with 4 Intel i226 chips, it provides up to 2.5Gbps network bandwidth, which is suitable for application scenarios with high data transfer speed and network stability requirements.

Supports dual-channel DDR4 DIMM memory, providing higher memory bandwidth and performance, suitable for application scenarios requiring multi-tasking and high bandwidth.

Provides 1 NVMe SSD slot and 8 SATA interfaces, supporting high-speed storage and high-capacity storage devices to meet various storage needs.

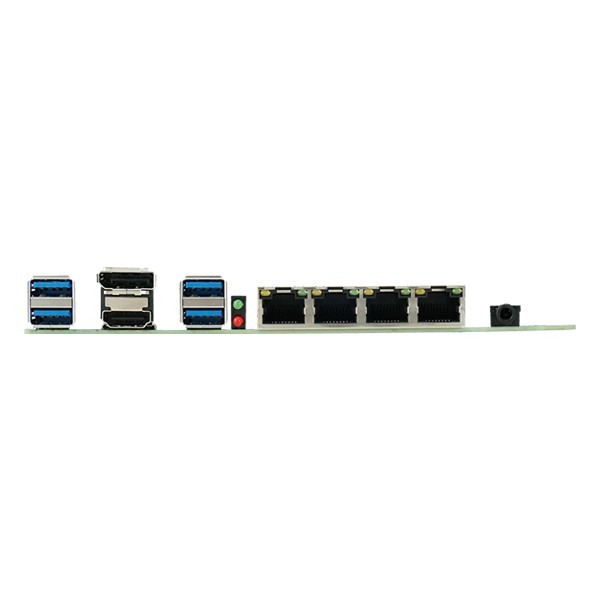

Provides 1 DP and HD interface, supports high-definition video output, can be displayed synchronously or asynchronously on multiple monitors, suitable for application scenarios requiring high-definition display.

The board size is 17*17 cm, which is suitable for installation needs in compact spaces and is widely used in various small systems and devices.

Application scenarios:

Network Video Recorder (NVR): With high-efficiency processing power and multi-port design, it is suitable as a core component of the video surveillance system, supporting access and recording of multiple HD cameras.
Home and small business server: With rich storage interfaces, it is suitable as a file server for home or small business, supporting large amounts of data storage and access. With high-quality video output and decoding capabilities, it can be used as a home media server with multiple hard drive storage, supporting streaming services and HD content playback.
Firewall and Router: With its multi-port design and high-efficiency processor, it can be used as an enterprise-level firewall and router, providing high-performance network security and traffic management.
Edge Computing: As an edge computing node, it provides localized data processing and storage, reduces latency and bandwidth consumption, and is suitable for applications such as industrial automation and the Internet of Things.
Advertising playback device: With high-quality video output and compact design, it is suitable for digital signage and advertising display screens, providing HD content playback and dynamic advertising display.
Self-service terminal: It can be used as the core computing device of the self-service terminal, providing high-performance and low-power computing capabilities.
