1264 NAS MB

Brand BKHD
Model 1264 NAS MB
Chipset BKHD-1264-NAS
Ethernet port 4*Intel i226 2.5G Ethernet
Memory 1*DDR5 SO-DIMM
Storage 1*M.2 SSD/1*NVMe SSD/6*SATA
Expansion slot 1*PCIe x1
Video output 1*DP/1*HD
Power Adapter ATX 24-Pin+4-Pin

Get Sample

Optional Processor

Intel N100 Cores: 4 Threads: 4

Related Attachments (Click to download)

Motherboard Specifications

BIOS file

Product Features:

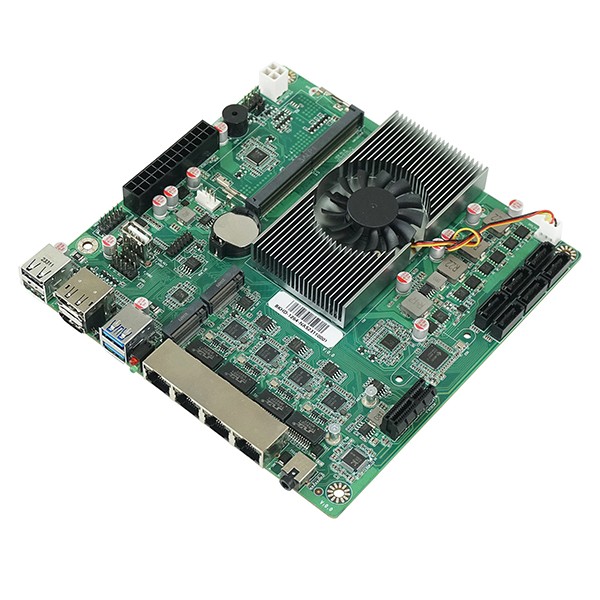

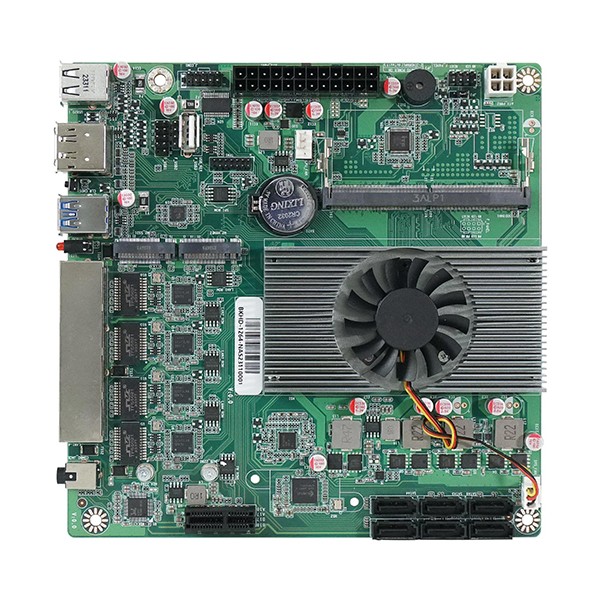

BKHD 1264 NAS is a Mini ITX form factor motherboard that can meet the needs of various application scenarios such as edge computing, industrial automation, networking, embedded systems, and home media servers.
Built-in Intel N100 high-efficiency processor, high-performance computing performance and low-power design, suitable for various daily and enterprise-level applications.
Equipped with 4 Intel i226 chips, it provides up to 2.5Gbps network bandwidth, adapts to high-speed data transfer needs, and is backward compatible with 10/100/1000Mbps.
Supports the latest DDR5 SO-DIMM, up to 16GB. Delivers higher bandwidth and lower latency to improve overall system performance.
Offers 2 high-speed M.2 SSDs and up to 6 SATA storage interfaces, supports high-capacity HDD/SSD storage devices, and adapts to different storage needs.
Offers 1 PCIe x1 interface, providing additional expansion options and the ability to add devices such as wireless network cards.
Provides 1 DP and 1 HD, supports high-resolution display output, suitable for multimedia applications and monitoring management.

Application scenarios:

Home and Small Office NAS: Supports multiple storage options to provide secure and reliable data storage and backup solutions.
File Sharing and Collaboration: Multiple high-speed network ports and high-capacity storage slots can be used for home and small office file sharing and collaboration.
Enterprise File Server: Built-in high-performance processor and advanced storage support make it ideal as an enterprise file server to handle large amounts of data and user requests.
Media Storage and Streaming Server: Built-in high-performance core graphics and high-speed storage disk make it ideal for streaming services and output high-definition content playback.
IoT Gateway: Its compact size and powerful processing power make it suitable as an IoT gateway, connecting and managing multiple IoT devices, processing and transmitting data.
Firewall and Router: Multiple 2.5G network card configurations and high-performance processing power make it suitable as an enterprise-level firewall and router, providing high-performance network security and traffic management.
