H9 N100 2L

Optional Processor

Intel N100 Cores: 4 Threads: 4

Related Attachments (Click to download)

Product Manual

Motherboard Specifications

BIOS file

Product Features:

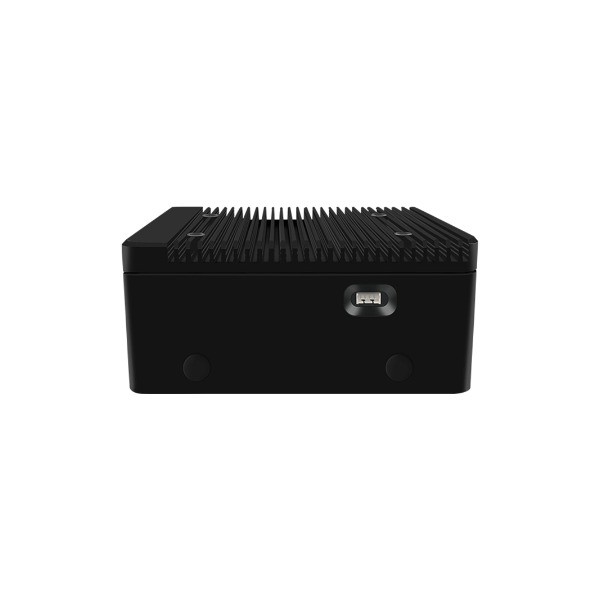

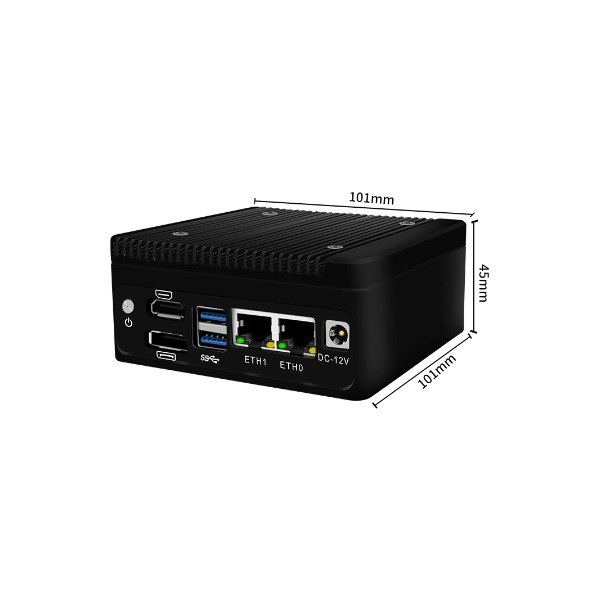

The BKHD H9 N100 2L mini host adopts a 9cm ultra-micro design, which is more compact and portable, and is very suitable for space-constrained application scenarios such as embedded systems and portable devices.
Equipped with an Intel N100 processor, 4 cores and 4 threads, the CPU TDP is only 6W, providing high-performance and low-power computing performance, suitable for various light computing tasks.
Equipped with 2 Intel i226 chips, each network port supports up to 2.5Gbps network bandwidth, suitable for application scenarios requiring high-speed network connectivity.

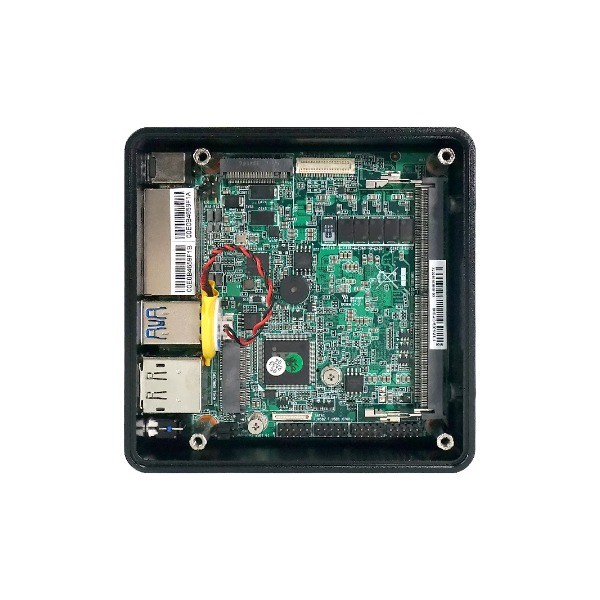

Includes 1*DDR5 SO-DIMM slot that can support up to 16GB 4800MT/s, providing higher bandwidth and lower latency, improving overall system performance.
Includes 1*PCIe 4.0 x1 rate M.2 2280 SSD slot, suitable for fast data read and write requirements.
Includes 1*M.2 Key E 2230 slot, supports CNVi protocol WiFi and Bluetooth modules, providing flexible wireless connectivity options.

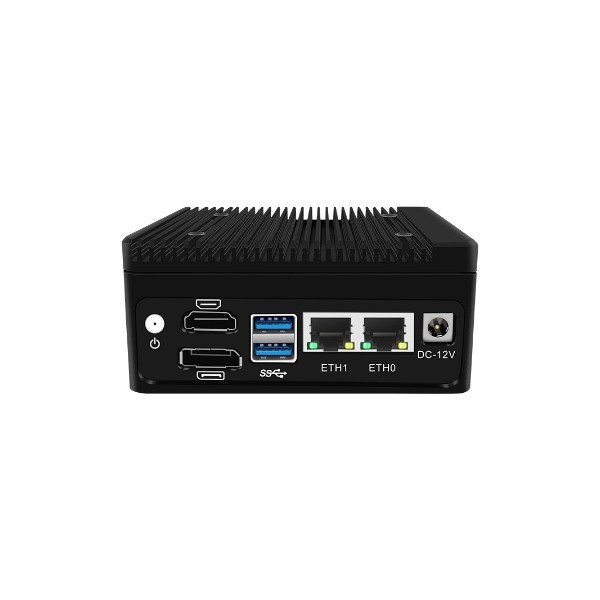

Provides 1*DP and 1*HD video output port. Supports multi-monitor configuration and high-resolution display output, suitable for multimedia applications and surveillance management.
Supports DC 12V power input, uses DC 5.5/2.5mm jack DC power interface, provides stable and efficient power supply, and ensures long-term stable operation of the system.

Application scenarios:

Mini router or firewall: dual-port 2.5G network connection, small and compact design, suitable as a mini network device for home and small office, providing secure, high-speed and stable network services.
Smart home gateway: efficient processing power, multiple network connection options, suitable as the core gateway of smart home, realizing the interconnection of smart home devices.
Embedded terminal: small and compact design, rich expansion interface, suitable as the core host of various embedded systems, supporting customized application requirements.
IoT gateway: small size, powerful processing power, suitable as an IoT gateway, connecting and managing multiple IoT devices, processing and transmitting data.
File sharing server: high-speed network connection, high-speed storage, suitable as a file sharing server, providing multi-user simultaneous access and file transfer sharing.
