Optional Processor

Model: Celeron N4000/J4125

Cores: 2/4

Threads: 2/4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

With the continuous development of industrial automation and intelligent manufacturing, the market demand for small, powerful, fanless industrial computers is growing. The G31 1090 2L mini host meets this market trend with its excellent performance and compact design. This low-power host features a Gemini Lake Refresh Series embedded Celeron processor that delivers powerful computing performance and optimized energy efficiency. It provides an ideal hardware platform for industrial control, data acquisition, Internet of Things, machine vision, and other application scenarios.

In terms of memory, the device supports DDR4 memory, and users can configure up to 8GB of memory capacity according to their specific needs to ensure high-speed data processing and smooth system operation. In terms of storage, it provides 1*mSATA and 1 *SATA slot. Users can flexibly choose solid state drives or traditional hard disk drives according to their speed and capacity requirements.

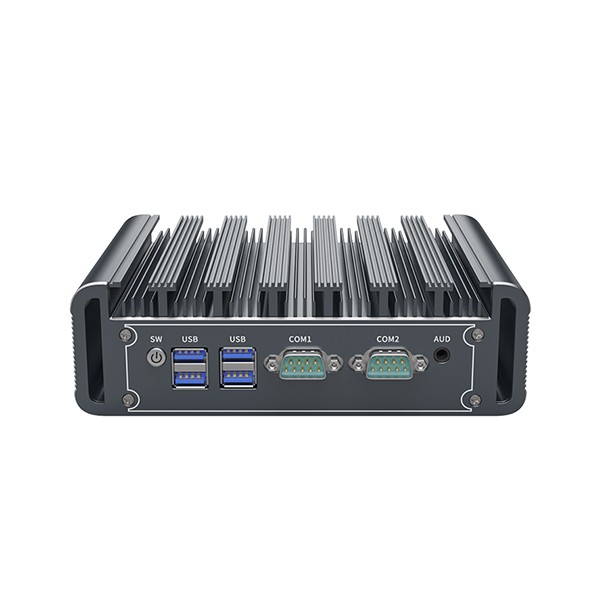

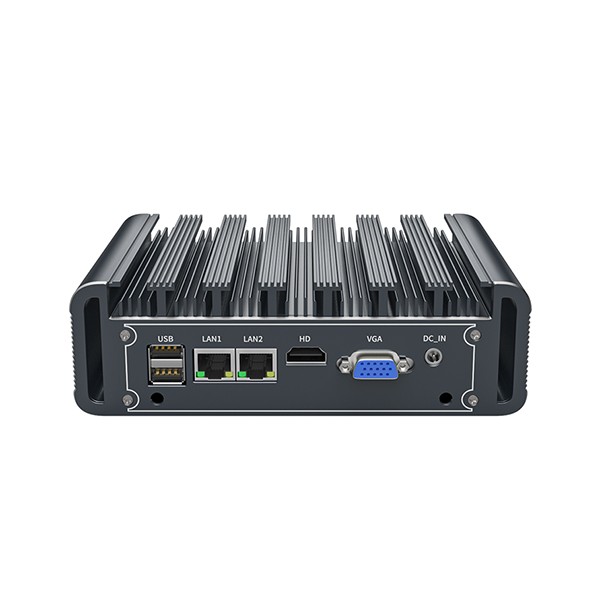

The device is equipped with 2*COM ports that can support RS232 and RS485 protocols (jump switch), ensuring good compatibility with various industrial devices for serial communication in automation systems and complex mechanical equipment. An HDMI and a VGA interface provide a multi-display solution, very suitable for situations where information needs to be displayed on several screens simultaneously.

A significant benefit of the fanless design is the ability to operate without the need for dynamic cooling, which not only reduces noise, but also means fewer moving parts, lower maintenance costs and increased system reliability. This is especially important in industrial environments where 24/7 uninterrupted operation is required.

It is a device ideally suited for modern industrial applications. It takes into account performance and power consumption, provides a stable and reliable X86 platform, and is flexible enough to meet the needs of different application scenarios, making it an ideal choice for industrial and IoT fields.
