G48S 1338 4L

Optional Processor

Celeron N5100 Cores: 4 Threads: 4

Celeron N5105 Cores: 4 Threads: 4

Pentium N6000 Cores: 4 Threads: 4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

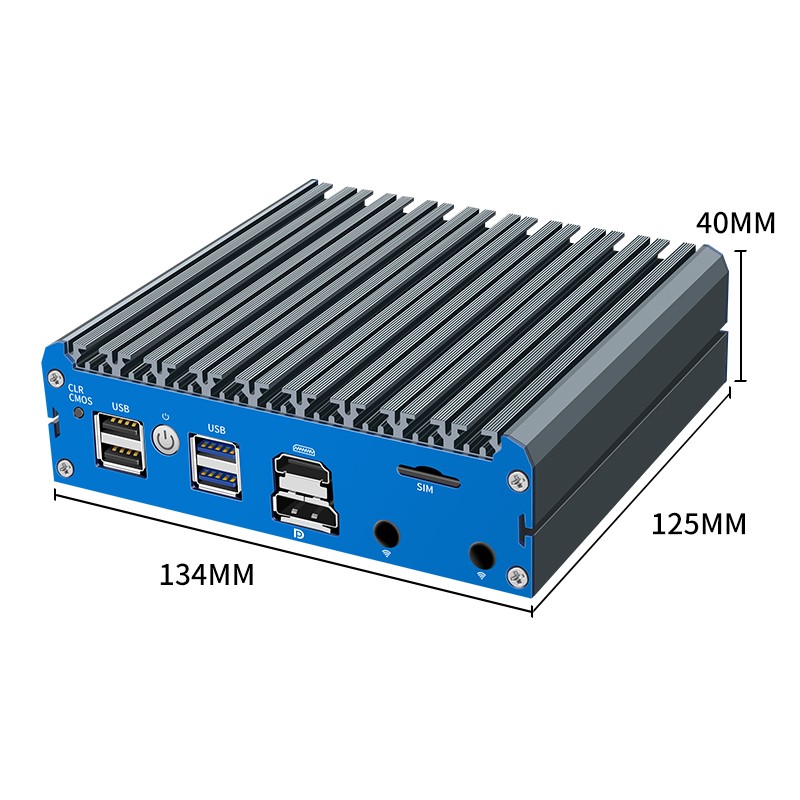

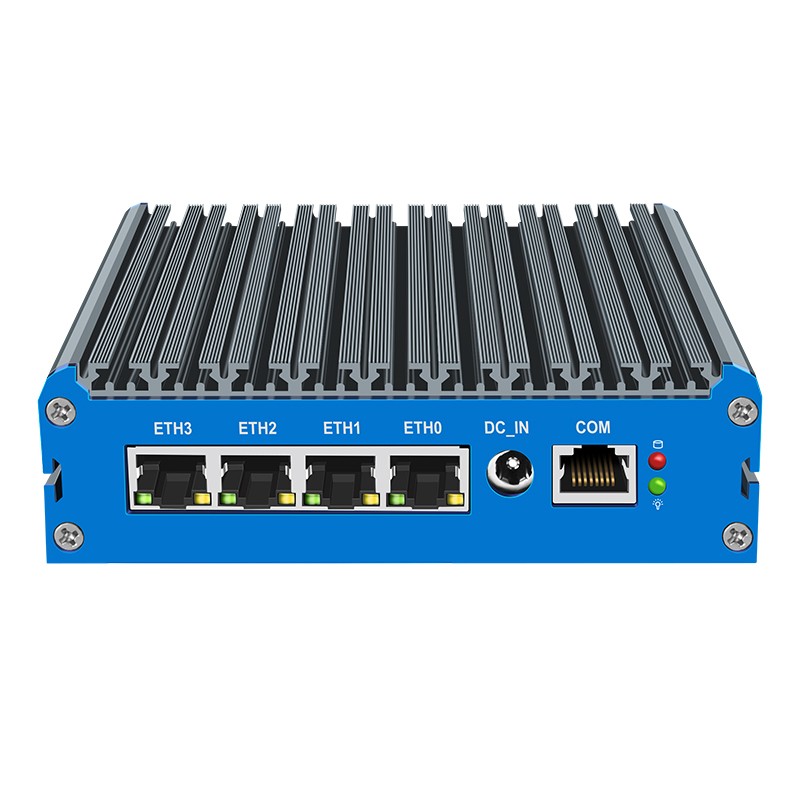

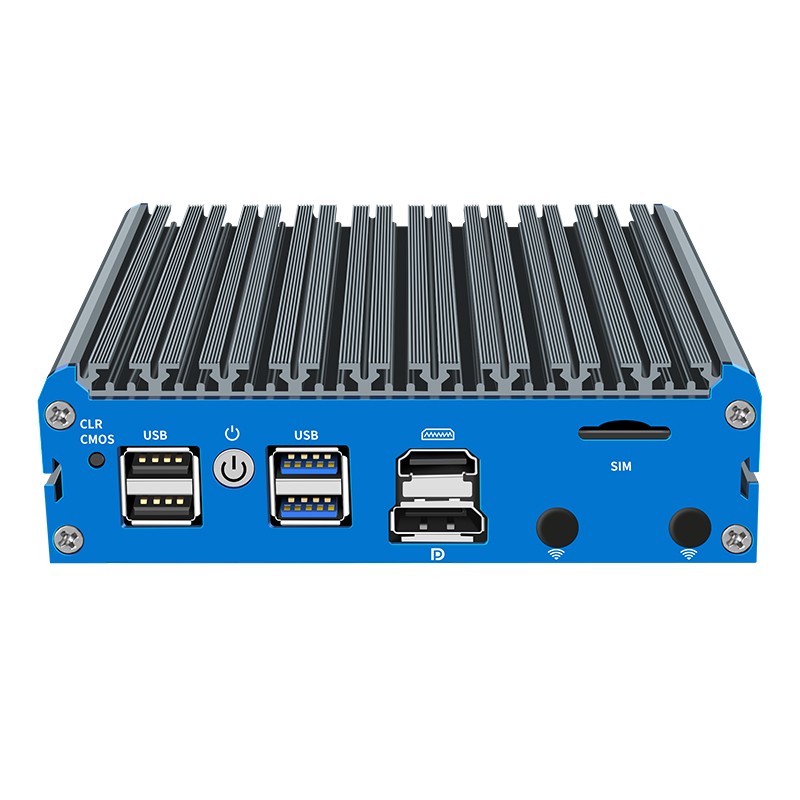

The BKHD G48S 1338 4L is a fanless high-performance networking device that can meet the needs of a variety of application scenarios, from networking equipment, small business servers, industrial control, security surveillance, IoT gateways and enterprise offices.
Powered by 11th generation Celeron and Pentium processors, it delivers powerful 4-core, 4-thread computing performance. Equipped with 4 Intel i226 chips, it provides up to 2.5Gbps of network bandwidth, which is suitable for application scenarios with high data transfer requirements and improves network performance.
Supports dual-channel memory configuration for increased memory bandwidth and system performance to meet multi-tasking requirements.
Offers 1*NVMe interface and 1*SATA interface, supporting flexible configuration of high-speed SSD and high-capacity HDD to meet different storage needs.
Provides 1*mPCIe slot to support WiFi, Bluetooth or 4G modules, enhancing the connectivity flexibility of the device.
Provides 1*DP and HD interface: Provides high quality video output options, supports multi-monitor configuration and is suitable for application scenarios that require video output.

Application scenarios:

Firewall and router: Multi-NIC configuration is suitable for enterprise-level firewall and router, providing high-performance network security and traffic management.
Load Balancer: Multi-NIC supports load balancing function, improving network bandwidth utilisation and reliability.
File Server: Centrally store and manage enterprise files, support concurrent multi-user access, and improve file sharing and collaboration efficiency.
Data acquisition and processing: High-performance network interface and powerful processing power suitable for industrial data acquisition and processing tasks.
Remote monitoring and management: Supports wireless connection module, provides remote monitoring and management functions, suitable for industrial automation system.
Video Surveillance Server: Multi-NIC and powerful processor, suitable as the core equipment of video surveillance system, supports multi-channel high-definition video stream processing and storage.
IoT management device: Support multiple network connections and wireless modules, suitable as IoT gateway, connect and manage multiple IoT devices.
Home Media Server: High-speed networking and extensive storage options, suitable as a home media server, providing streaming services and high-definition content playback.
Electronic Library: Provides students and teachers with a platform for centralised storage of educational materials and supports online access to resources.
