Brand BKHD
Model G31B 1528 6L
Chipset GF-1528NP-12
Network port 6*1G/2.5G intel NIC
Memory 2*DDR4-SODIMM
Storage 1*mSATA/1*SATA
Expandable 1*mPCIe for WiFi/Bluetooth/4G

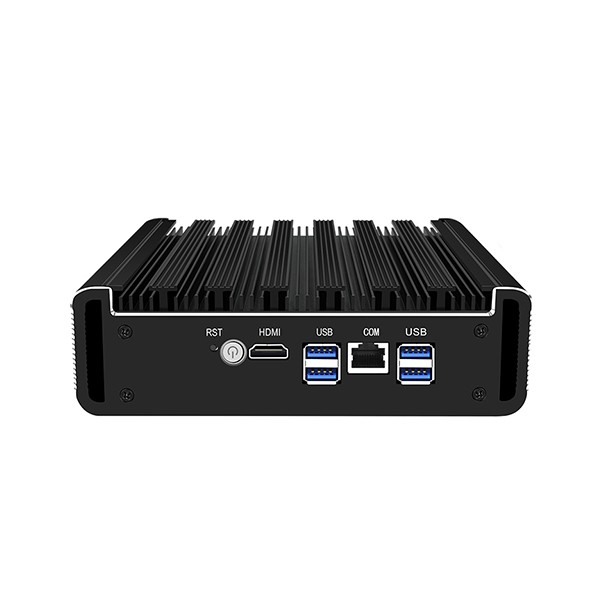

Video output 1*HDMI
Power Adapter DC 12V-6A
Optional Processor | |||
Model | Cores | Threads | Clockspeed |
Pentium 5405U | 2 | 4 | 2.3 GHz |
Pentium 6405U | 2 | 4 | 2.4 GHz |
Core I3-10110U | 2 | 4 | 2.1 GHz |
Core I5-10210U | 4 | 8 | 1.6 GHz |
Core I7-10510U | 4 | 8 | 1.8 GHz |
Related Attachments (Click to download) |
Product manual |
Product specifications |
BIOS file |
Product features:

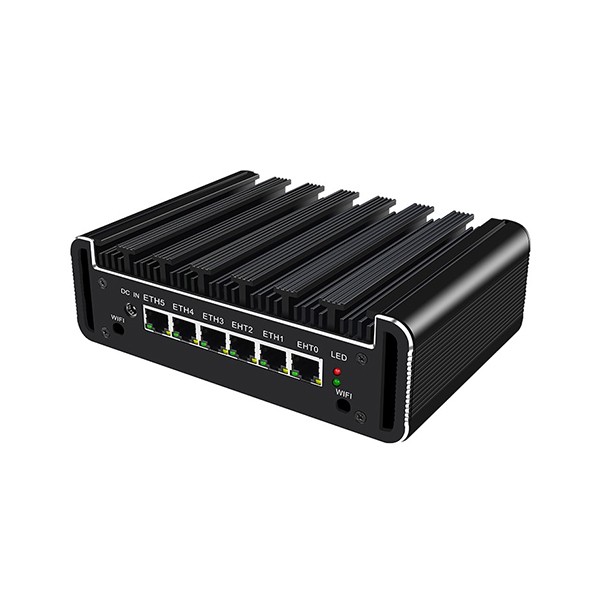

The BKHD G31B 1528 6L Fanless Soft Router is a high-performance soft router device supporting Pentium and Core processors, equipped with dual-channel DDR4 memory that supports up to 64GB of memory capacity, providing excellent computing performance and multitasking capabilities.

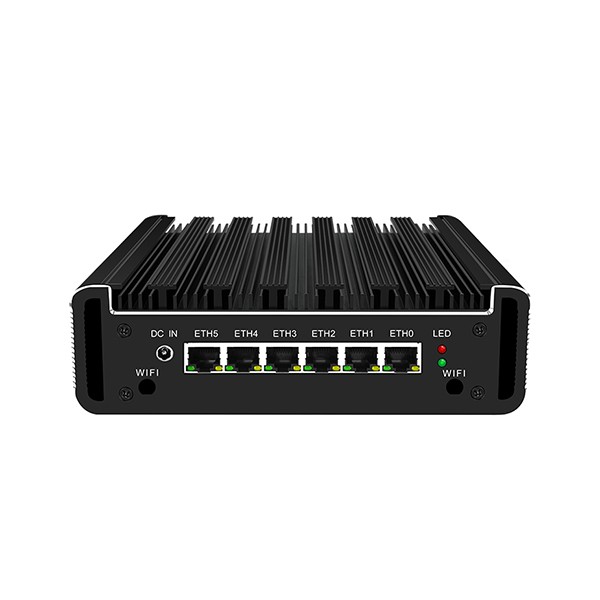

It has 6x2.5G Ethernet ports that support high-speed network data transfer and can meet the needs of scenarios such as high-speed home networking and enterprise-level networking.
It features low power consumption, low noise, and no vibration, and is designed with a lightweight, fanless design to operate stably in harsh environments. In addition, it supports wall-mounting design, which occupies less space and makes it convenient to install and arrange.
It has multiple security protection functions, such as firewall support, intrusion detection, etc., which can effectively protect network security. In addition, this soft router supports various operating systems such as RouterOS and PfSense, which provides excellent compatibility and scalability.
