G26 1264TI4 1L

Optional Processor

Intel N100 Cores:4 Threads:4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

The BKHD G26 1264TI4 1L is equipped with the Intel N100 processor, providing powerful computing for data-intensive industrial environments. Whether it is complex data processing, image analysis or running heavy-duty industrial applications, it can meet and exceed your expectations.

Supports up to 16GB of DDR4 memory for improved multitasking efficiency and system responsiveness. The internal storage configuration includes 1 SATA interface and 1 M.2 2280 slot, providing a variety of high-speed storage options that greatly enhance data processing and access speed.

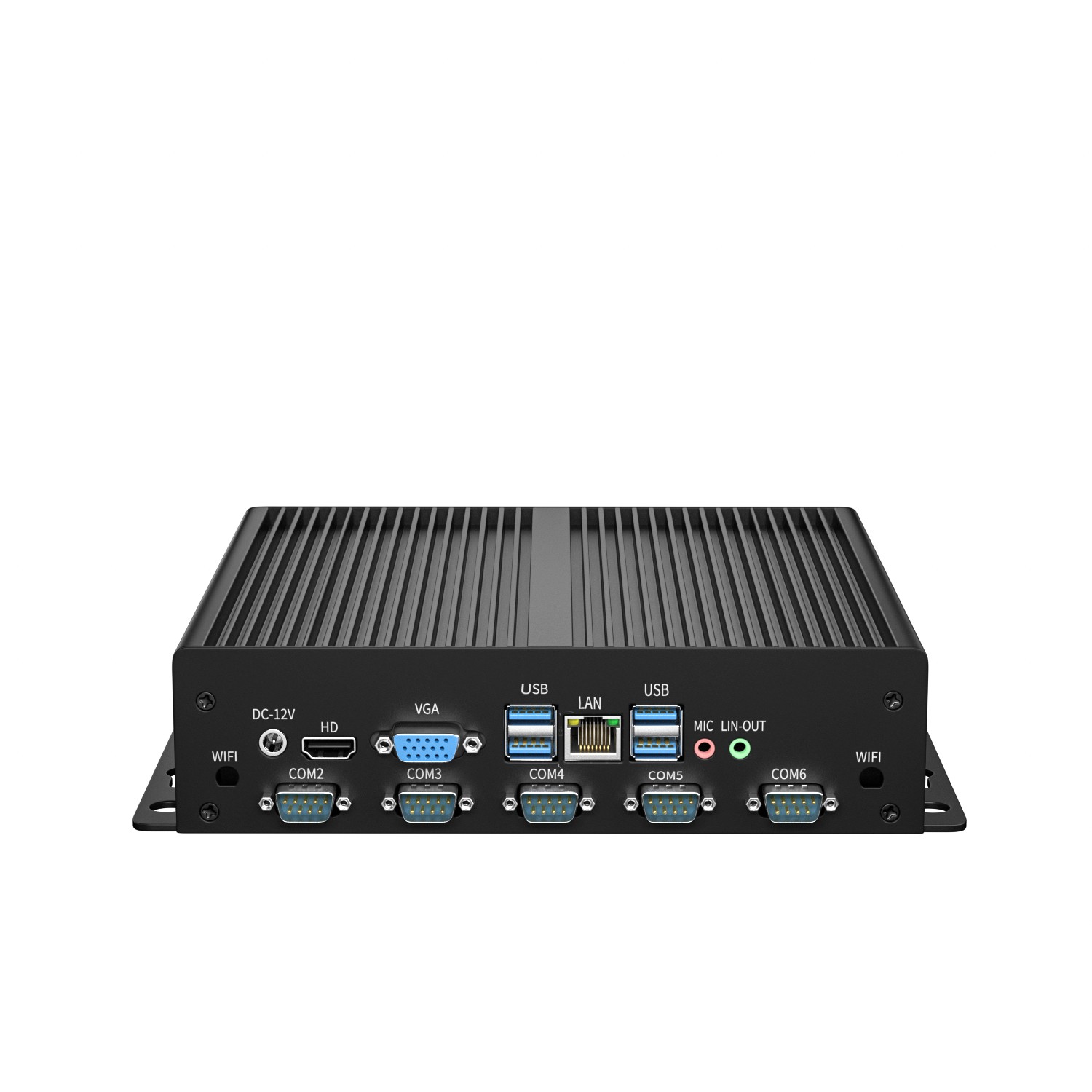

With VGA and HD dual display ports and optional eDP or LVDS pin interfaces, these rich display output options are suitable for applications requiring multi-display solutions such as digital signage, industrial monitoring, etc. Multi-display interfaces provide high flexibility in visual performance and data display.

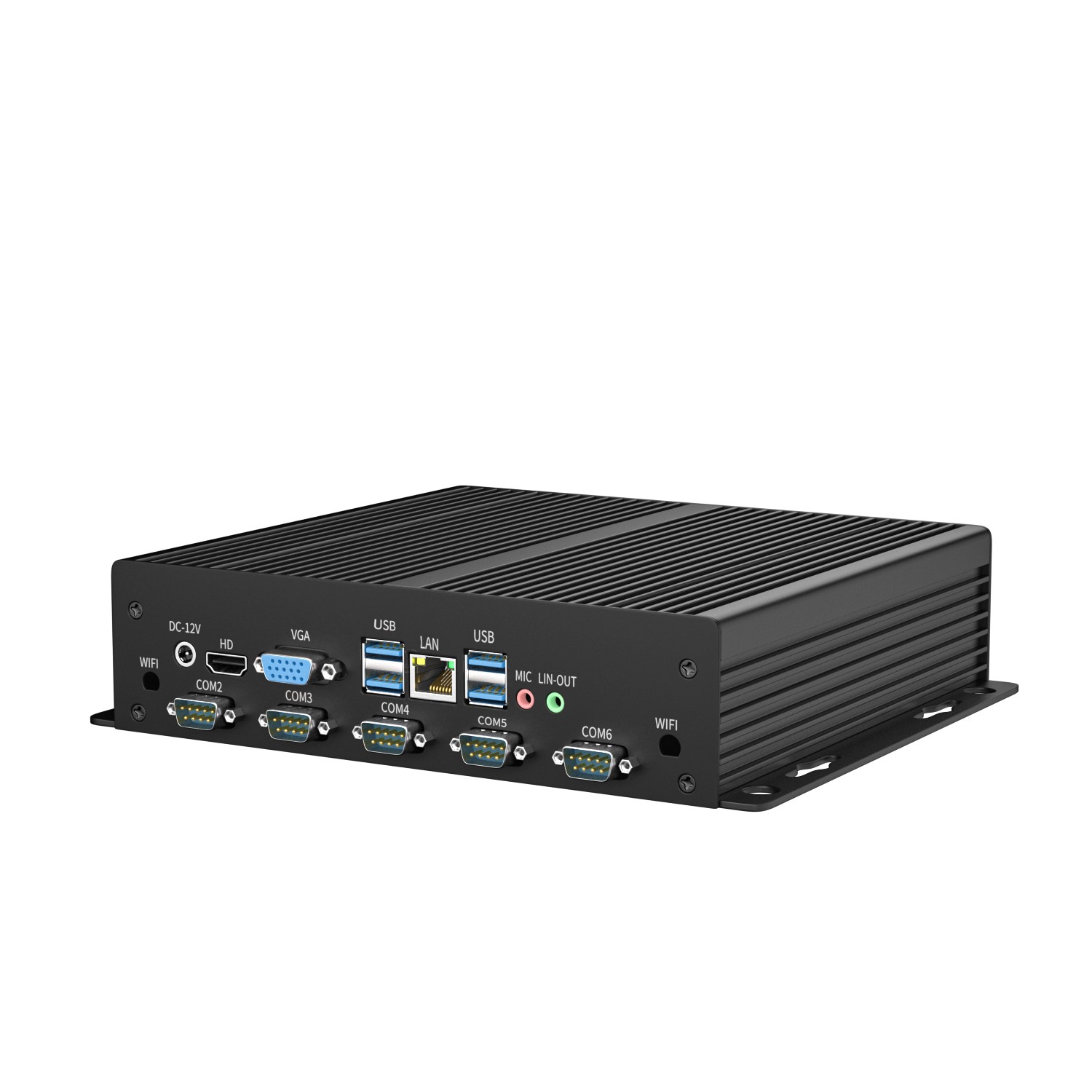

Provides up to 6 USB ports and 6 COM ports, of which COM1 and COM2 can support RS485/RS232 protocol and the rest support RS232. It can be easily connected to a wide range of peripherals, including sensors, controllers and other industrial equipment, making it an ideal choice for automation and data acquisition systems.

The fanless design also ensures continuous operation in harsh environments without worrying about the impact of dust and other particles on system performance. This design not only reduces maintenance costs, but also improves equipment reliability and lifetime.
