1U Silver 989 6L

Brand BKHD
Model 1U Silver 989 6L
Chipset BKHD-989NP-20-6L
Network port Intel i226 2.5GE or 82574L 1GE
Memory 1*DDR3L SO-DIMM
Storage 1*mSATA/1*SATA
Expandable 1*mPCIe for WiFi/BT module
1*mPCIe for 4G module
1*PCIe x8 Slot
Video output 1*VGA/1*HD (optional)
Power Adapter ATX 100~240V

Optional Processor

Model: Core i3-2350M//i3-3110M/i5-3320M/i7-3520M

Cores: 2/2/2/2

Threads: 4/4/4/4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

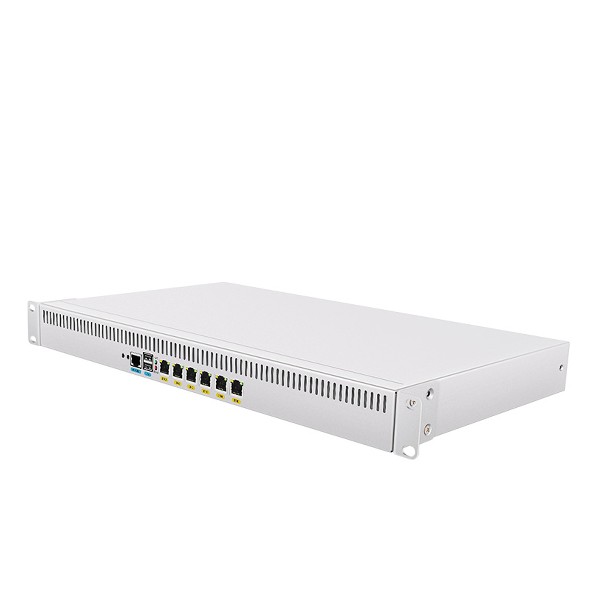

The BKHD 1U Silver 989 6L is a rack-mountable network device that can be equipped with the third-generation Intel Core processor, DDR3 memory and supports up to 8GB of memory capacity.

It features a 1U rackmount chassis design that is convenient for cabinet installation and management. At the same time, it has the ability to adapt to a wide range of temperature environments and can operate stably within a temperature range of -20 degrees Celsius to 60 degrees Celsius, ensuring the reliability and stability of the device.

X86 architecture design, excellent compatibility, can widely support various operating systems and software, whether you use various routing systems such as OPNsense, Pfsense, MikrotikOS, VyOS, or Windows desktop and server series, can easily meet your work environment requirements.

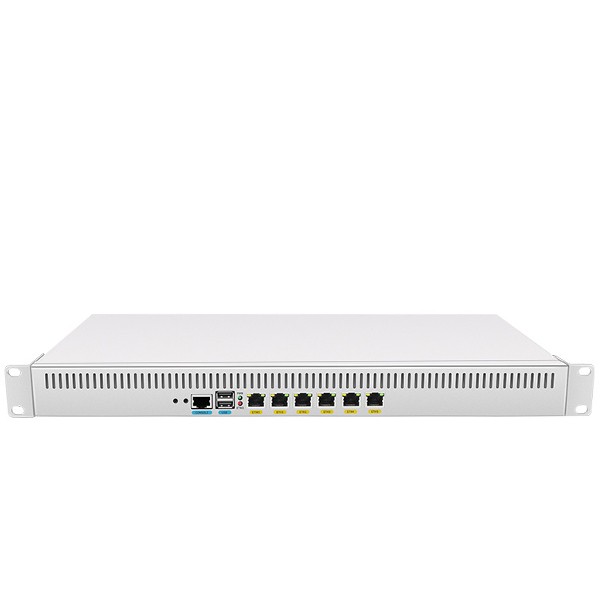

Equipped with 6* Gigabit or 2.5G Ethernet ports, using Intel adaptive network card technology, it provides excellent support for high-speed network data transmission, can meet the needs of various scenarios such as high-speed home networking and enterprise-level networking, easily connect multiple devices, and achieve fast and stable data transmission.

The device provides 2*mPCIe and 1*PCIe x8 expansion slots, supports additional expansion slots and connections, and can be upgraded and expanded as needed.

Powerful performance, energy saving and environmentally friendly, adopts low power design, meets environmental standards, not only saves energy and reduces operating costs, but also helps to reduce environmental impact.
