R9 N100 4L

Optional Processor

Intel N100 Cores: 4 Threads: 4

Related Attachments (Click to download)

Product Manuals

Motherboard Specifications

BIOS file

Product Features:

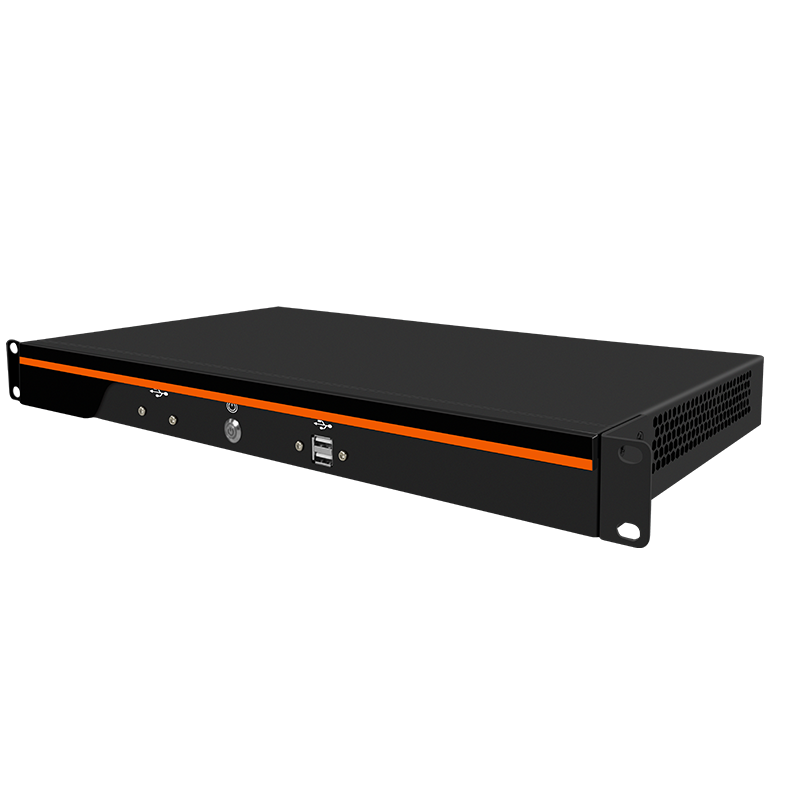

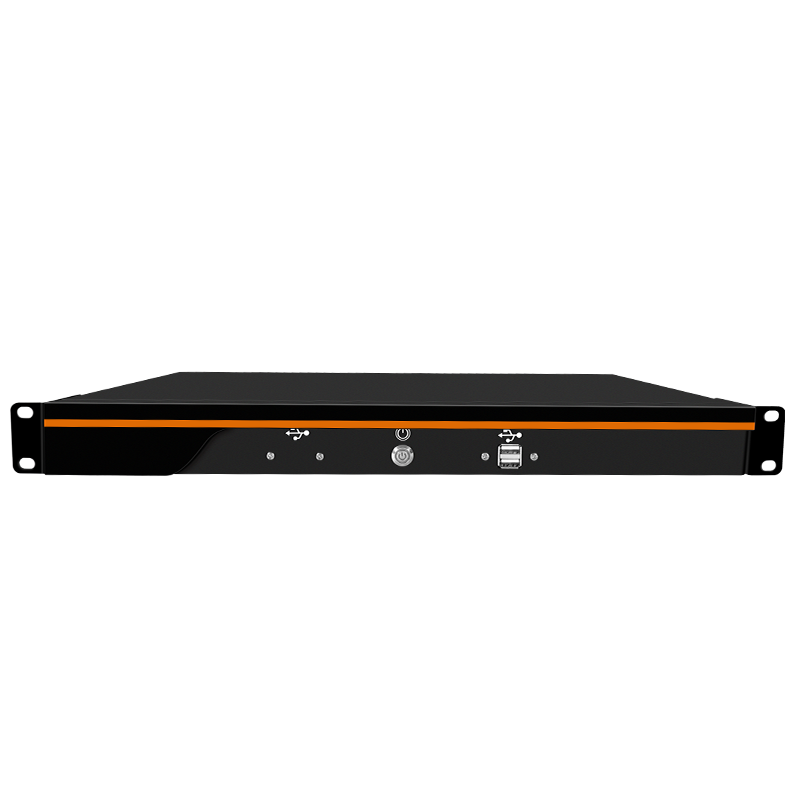

The BKHD 1U R9 N100 4L is a 19-inch rackmount network appliance designed to meet the needs of a variety of application scenarios, including edge computing, industrial automation, network routers, embedded systems, and home media servers.
The integrated high-efficiency Intel N100 processor delivers high-performance computing and low-power design for a wide range of everyday and enterprise applications.

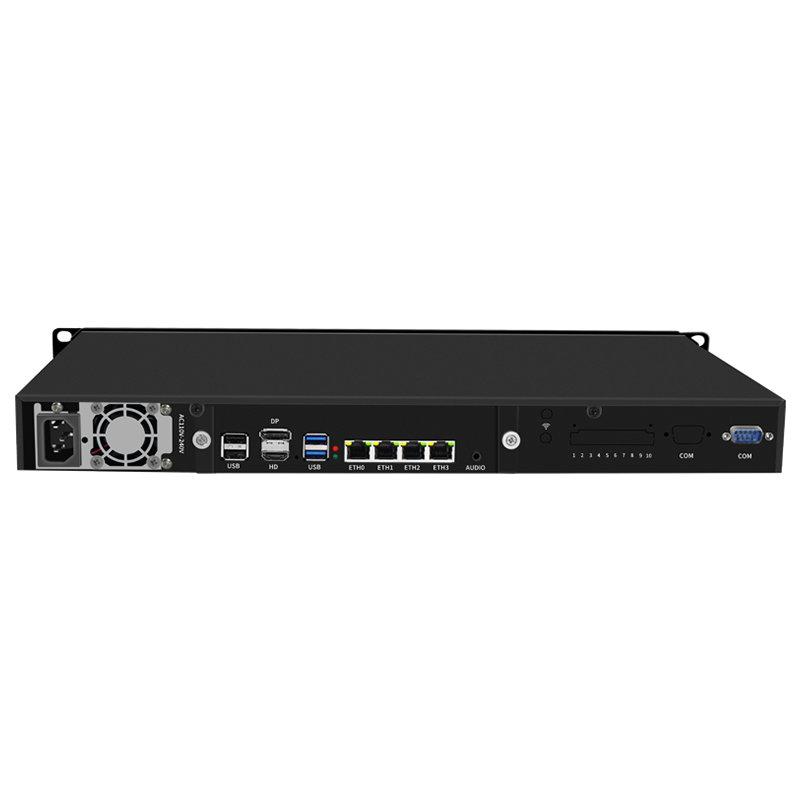

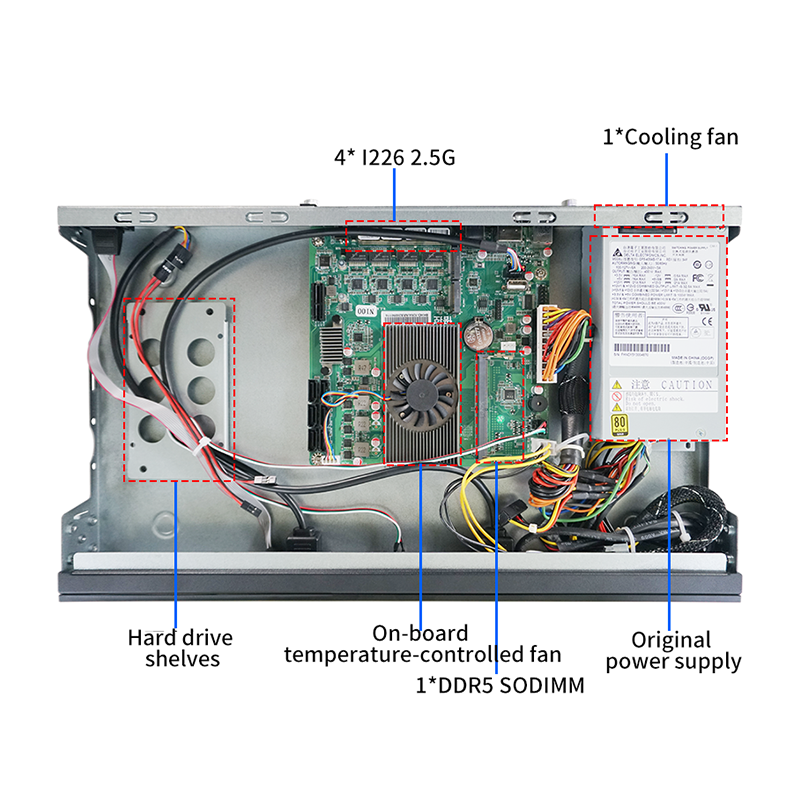

Equipped with four Intel i226 2.5G NICs with RJ45 interface, it supports high-speed Ethernet connectivity, suitable for efficient data transfer and network management in multi-network environments, and is backward compatible with 10/100/1000Mbps.
Supports DDR5 SO-DIMM memory, providing higher bandwidth and efficiency, improving data processing capability and system response speed.
Diversified storage options, supporting M.2 SSD, NVMe SSD, and SATA storage interfaces, providing flexible storage configurations and fast data access speeds to adapt to different storage needs.
Provides 1x PCIe x1 interface that can be used to add other function modules or devices to increase customization options.
Provides 1xDP and 1xHD to support high-resolution displays, suitable for application scenarios that require graphic displays.
Supports 100~240V ATX power supply, adapting to global voltage standards, convenient for use in different countries and regions.

Application scenarios:

Industrial Automation: For industrial environments that require reliable connectivity and data processing, supporting applications such as factory automation systems, production line monitoring, and more.
Network Equipment and Security Management: Can be applied to network management equipment, taking advantage of multiple network ports for traffic monitoring, packet filtering, and security management.
Embedded systems: Can be applied to embedded systems that require compact design and powerful computing power, such as intelligent transportation, remote monitoring, and other areas.
Edge Computing: Can be used in edge computing environments to support local processing and reduce latency, suitable for data-intensive applications.
Streaming Media Server: Built-in high-performance core graphics and high-speed storage disks make it ideal for streaming media services and output HD content playback.
IoT Gateway: Can be used as an IoT gateway to connect and manage multiple IoT devices to process and transmit data.
