1U PVC 1356 6L

Brand BKHD
Model 1U PVC 1356 6L
Chipset BKHD-1356NP-20-6L
Network port Intel i226 2.5GE
Memory 2*DDR4 SO-DIMM
Storage 1*NVMe/1*SATA
Expandable
1*mPCIe half-height for WiFi/BT module
1*mPCIe for WiFi/BT/4G module
Video output 1*VGA/1*HD (optional)
Power Adapter ATX 100~240V

Optional Processor

Model: Core i3-8130/i5-8250U/i7-8550U

Cores: 2/4/4

Threads: 4/8/8

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

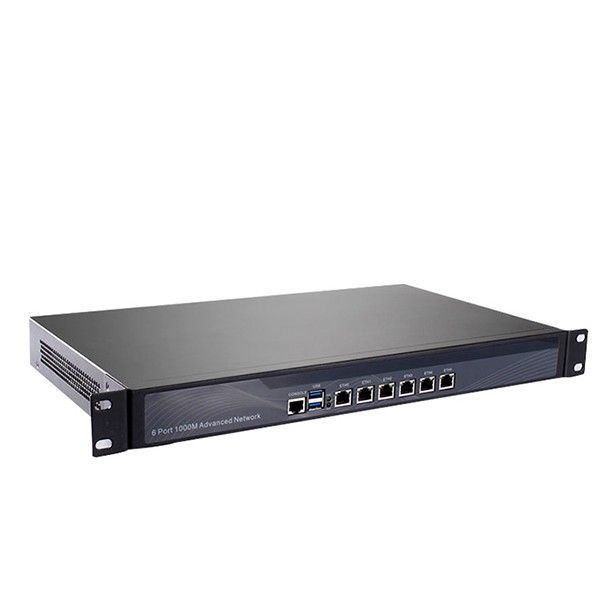

The BKHD 1U PVC 1356 6L is a high performance rackmount network appliance designed to meet enterprise-level networking requirements.
Processor options: Built-in Intel Core i3, i5 and i7 processors are optional, providing flexible performance options to meet varying application requirements.
Memory Support: Supports dual-channel DDR4 memory with up to 32GB capacity, providing ample memory for the most demanding tasks.
Onboard network connectivity: Equipped with 6*Intel i226 2.5G Ethernet ports, providing a fast and resilient network connection suitable for a variety of enterprise-level networking application scenarios.
Expansion slot: With 1*mPCIe half-height slot and 1*mPCIe full-height slot, more wireless network modules can be added, such as WiFi, BT, 4G, etc., providing flexible network access methods to meet network needs in different environments.
Multi-user support: Meet the high-speed connectivity requirements of enterprise-level networks, support multiple users online at the same time and efficient data exchange, and improve the overall efficiency of enterprise networks.
With excellent and powerful processing performance, a wide range of high-speed network interfaces and flexible expansion slots, it ensures that it can meet the needs of various high-load, high-bandwidth network applications. Whether used for enterprise network management, efficient data transfer or industrial communications, it can provide reliable and efficient solutions.
