1U Grey 989 8L2F

Brand BKHD
Model 1U Grey 989 8L2F
Chipset BKHD-989NP-23-8L
Network Port Intel 82583V or 82574L Gigabit Ethernet
SFP Port Intel i350 1G SFP
Memory 1*DDR3L SO-DIMM
Storage 1*mSATA/1*SATA
Expandable
1*PCIe x8
1*mPCIe for WiFi/BT module
1*mPCIe for WiFi/4G module
Video Output 1*VGA/1*HD (optional)
Power Adapter ATX 100~240V

Optional Processor

Model: Core i3-3110M/i5-3320M/i7-3520M/i7-3610QM

Cores: 2/2/2/4

Threads: 4/4/4/8

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

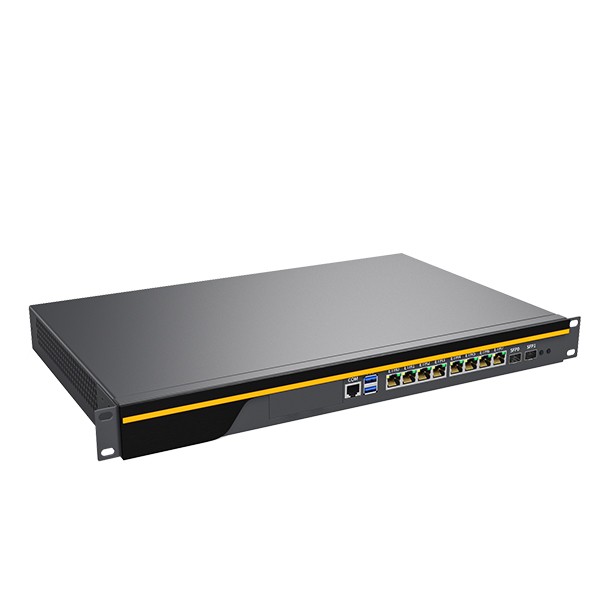

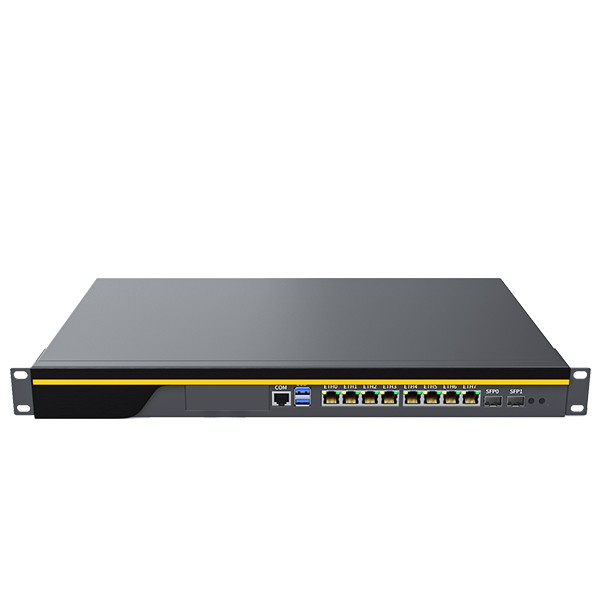

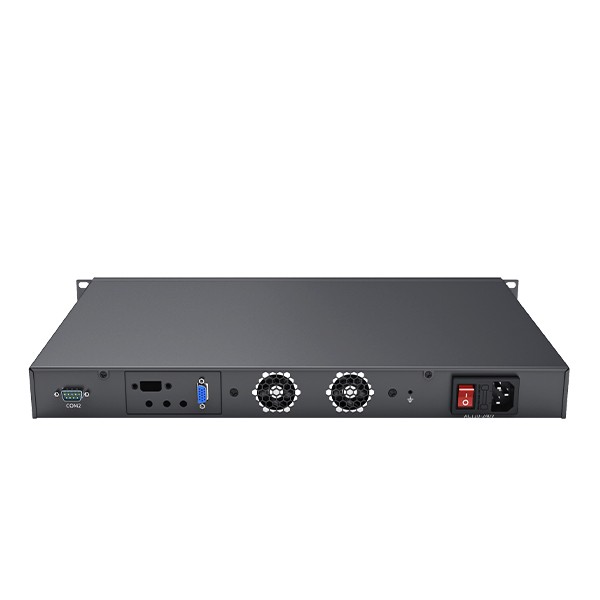

The BKHD 1U Grey 989 8L2F is a high-performance, flexibly expandable rack-mount network appliance that offers a wealth of network interfaces and expansion options to meet the needs of enterprise-level networks and data centres. Equipped with third generation Intel Core processor, optional i3/i5/i7 processors.
Equipped with 8 Intel Gigabit Ethernet ports and 2 Intel i350 Gigabit SFP fibre ports, it is suitable for application scenarios requiring fibre connectivity and offers higher stability and bandwidth support. It offers 1 DDR3L SODIMM slot supporting a maximum memory capacity of 8GB to meet the memory requirements of general networking applications. 1 mSATA interface for fast solid state storage. 1 SATA interface, suitable for mechanical hard drives or SSDs, for flexible storage options
1 mPCIe slot that can be used to expand WiFi or Bluetooth modules for wireless connectivity. 1 mPCIe slot that supports the expansion of WiFi or 4G modules to further enhance wireless connectivity. 1 PCIe x8 slot for additional expansion, which can be used to add more functional modules such as high-speed network cards, storage cards, accelerator cards, etc.
Supports multiple concurrent online users and efficient data exchange, improving the overall efficiency of the enterprise network. Multiple Gigabit interfaces ensure high bandwidth and low latency network connections.
