C236NP 8L 2S

Brand BKHD
Model 1U C236NP 8L 2S
Chipset BKHD-H170/C236NP-21-8L
Network port Intel i211 Gigabit Ethernet or i226 2.5G Ethernet
SFP port Intel 82599ES 10G SFP+
Memory 2*DDR4 SO-DIMM Memory slot
Storage 1*mSATA/2*SATA 6.0Gb/s
Expandable
1*mPCIe for WiFi/BT/4G module
1*mPCIe for WiFi/BT module
Video output 1*VGA/1*HD (optional)
Power Adapter ATX 100~240V 200W

Optional Processor

Model: Core i3-6100/i3-9100/i5-9400/i7-9700/Xeon E3-1225V5

Cores: 2/4/6/8/4

Threads: 4/4/6/8/4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

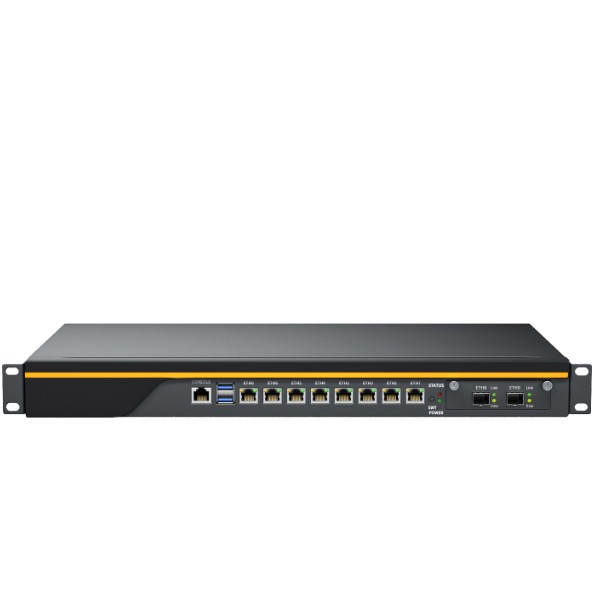

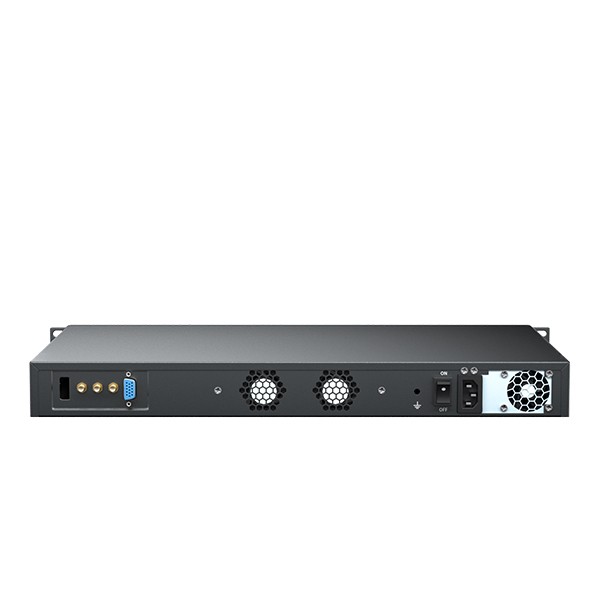

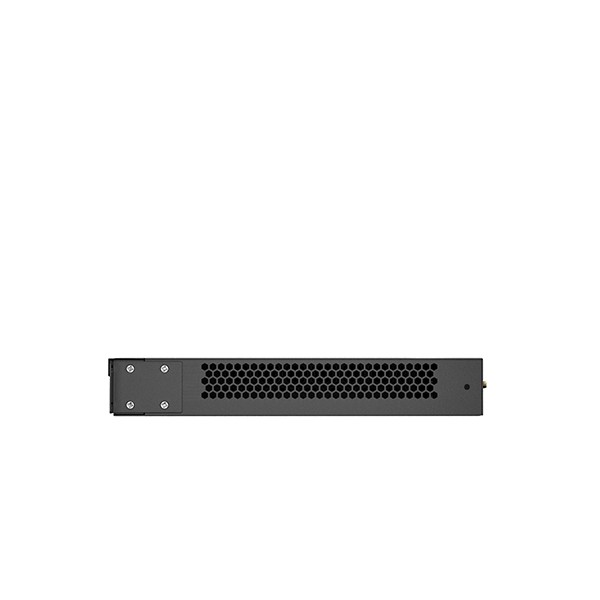

The BKHD 1U C236NP 8L 2S is a rackmount unit designed for high performance network applications.
Supports LGA1151 processor: Optional Core i3/i5/i7 or Xeon E3 processor provides powerful multi-tasking computing and processing capabilities to meet complex computing needs.
Dual-channel DDR4 SO-DIMM: Supports up to 64GB of memory for smooth data processing and excellent application response speed.
Storage expansion: With 1*mSATA and 2*SATA interfaces, you can easily add a hard disk or solid state drive to meet your high-speed storage needs.
Comprehensive network connectivity: 8*Intel i211 Gigabit (or i226 2.5G) network ports and 2*Intel 82599ES 10G SFP+ ports support 10G network connectivity to meet the needs of enterprises and data centres with ultra-high network speed requirements. Provides stable and reliable high-speed network connectivity.

Expandable wireless connectivity: 2*mPCIe slots support wireless and 4G network modules for flexible network connectivity options.
Intelligent management function: Supports automatic startup, scheduled startup, LAN wake-up, PXE startup and watchdog functions to improve the manageability and reliability of the device and meet the high standards of remote management and maintenance of enterprise-level users.
Application Scenarios:
Efficient workstation: Suitable for building efficient workstations to handle large amounts of data and complex tasks.
Intensive network applications: Deploy intensive network applications to ensure the efficient operation of the network.
Enterprise-level firewall: Create a reliable enterprise-level firewall to protect network security.
