Optional Processor

Model: Core i3-3110M/i5-3320M/i7-3520M/i7-3610QM

Cores: 2/2/2/4

Threads: 4/4/4/8

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

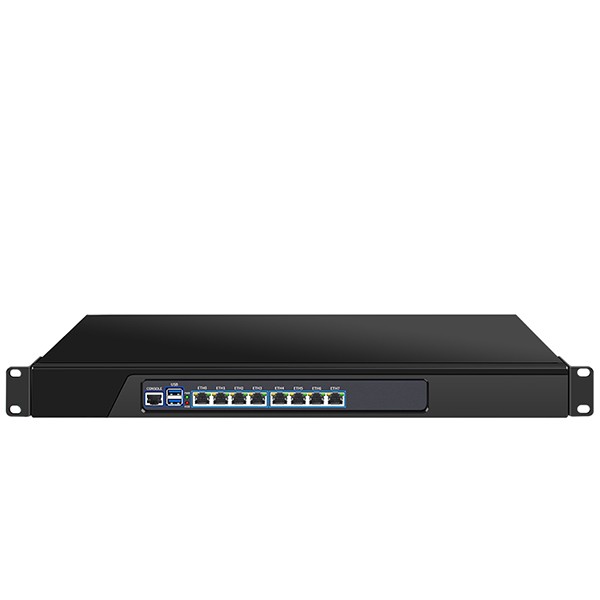

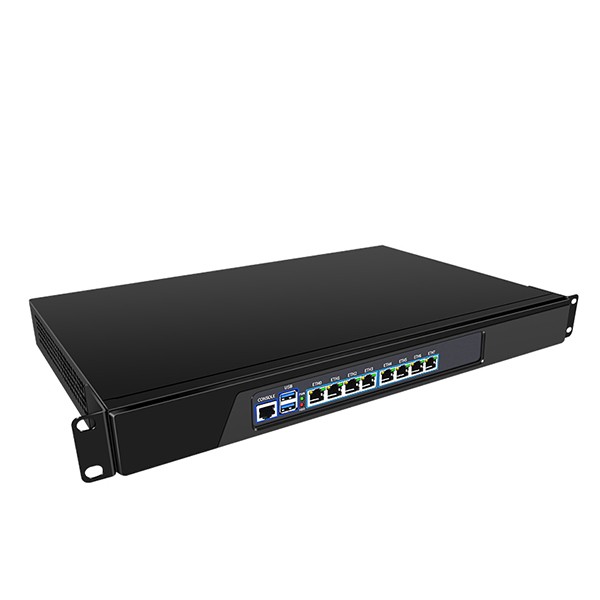

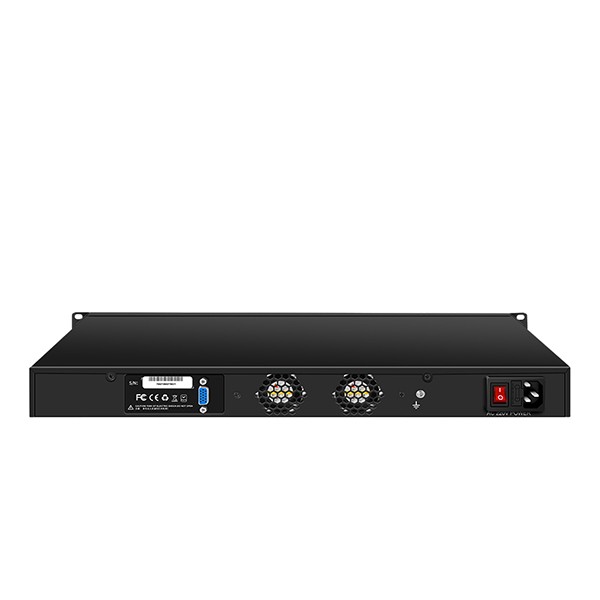

The BKHD 1U 989 8L is a high-performance, flexibly expandable rack-mount network appliance with a wide range of network interfaces and expansion options to meet the needs of enterprise-level networks and data centres. Equipped with third generation Intel Core processor, optional i3/i5/i7 processors.
Equipped with 8 Intel Gigabit Ethernet ports for fast and resilient network connectivity. Supports 1 DDR3L SODIMM slot, supporting up to 8GB of memory capacity to meet the memory requirements of general networking applications. 1 mSATA interface for high-speed solid state storage. 1 SATA interface that accepts mechanical hard drives or SSDs for flexible storage options.
1 mPCIe slot that can be used to expand WiFi or Bluetooth modules for wireless connectivity. 1 mPCIe slot that supports the addition of WiFi or 4G modules to further enhance wireless connectivity. 1 PCIe x8 slot for additional expansion, can be used to add more functional modules such as high-speed network cards, storage cards, accelerator cards, etc.
Supports multiple online users and efficient data exchange to improve the overall efficiency of enterprise networks. Multiple Gigabit interfaces ensure high-bandwidth, low-latency network connections.
