1U 1449 6L

Brand BKHD
Model 1U 1449 6L
Chipset BKHD-1449NP-20-6L
Network port Intel i226 2.5GE
Memory 2*DDR4 SO-DIMM
Storage 1*mSATA/1*SATA
Expandable 1*mPCIe for WiFi/BT/4G module
Video output 1*VGA/1*HD (optional)
Power Adapter ATX 100~240V

Optional Processor

Model:Pentium 7505/Core i3-1115G4/i5-1145G7/i7-1165G7

Cores:2/2/4/4

Threads:4/4/8/8

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

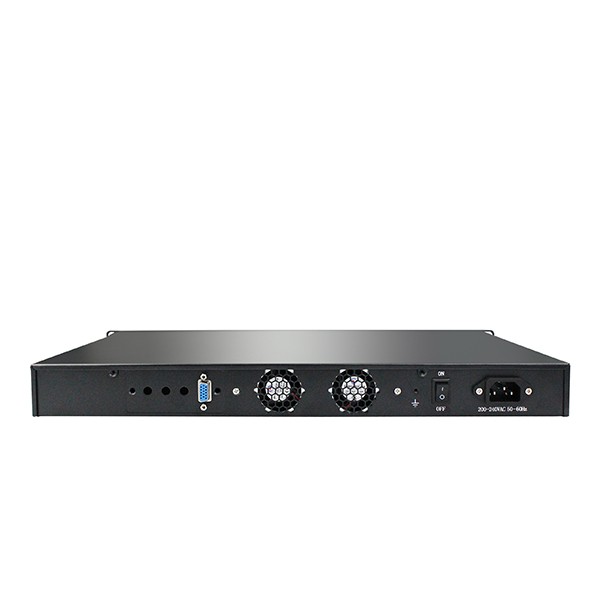

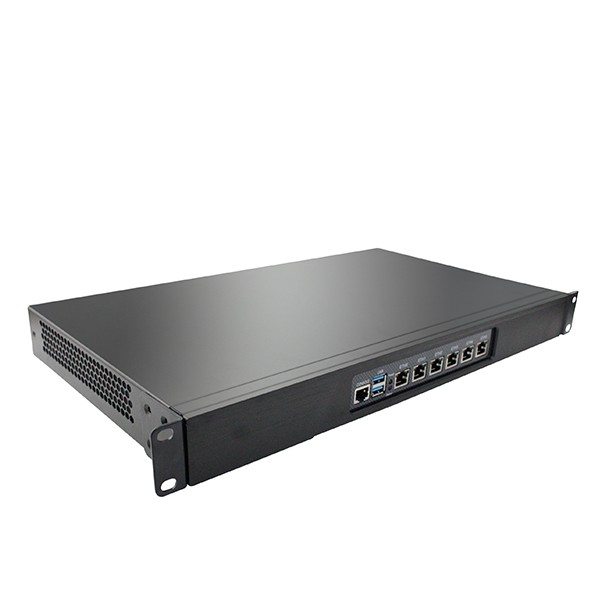

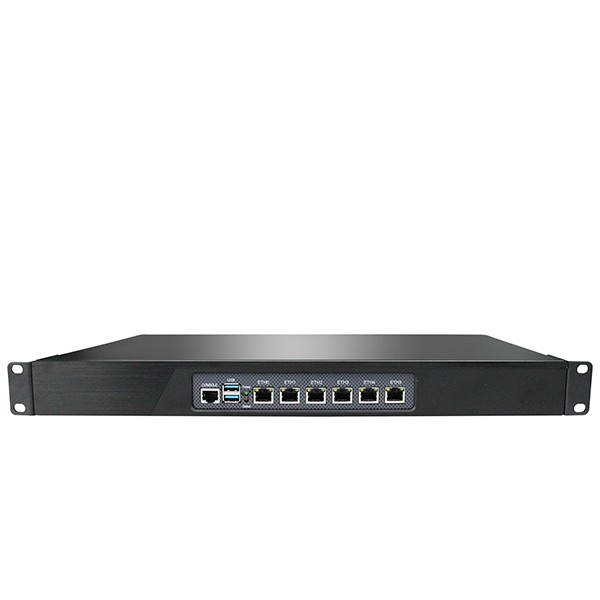

The BKHD 1U 1449 6L is a high performance rackmount network appliance featuring Intel's 11th generation Pentium and Core processors, delivering powerful computing power to meet the demands of complex network applications.
Memory slot: Supports dual channel DDR4 memory up to 64GB for smooth system operation and efficient data processing;
Network port: Equipped with 6 2.5G Ethernet ports, supports 2.5G BASE-T full-duplex baseband transmission, backward compatible with 10M/100M/1000M, provides excellent network connection performance to meet the needs of high-speed home networking and enterprise-level networking;
Expansion slot: Provides 1 mini-PCIe expansion slot that can be used to expand Wi-Fi/Bluetooth/4G modules, increasing the device's wireless connectivity capabilities and enhancing the device's flexibility and functionality;
Dual Display Output: Provides 1 VGA and 1 HD (optional) dual display output to meet the needs of multi-monitor configurations and facilitate multi-screen operation and management.
