1310NP 6L 4S

Optional Processor

Intel Atom C3758 - 8 Cores 8 Threads
Intel Atom C3858 - 12 Cores 12 Threads
Intel Atom C3958 - 16 Cores 16 Threads

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

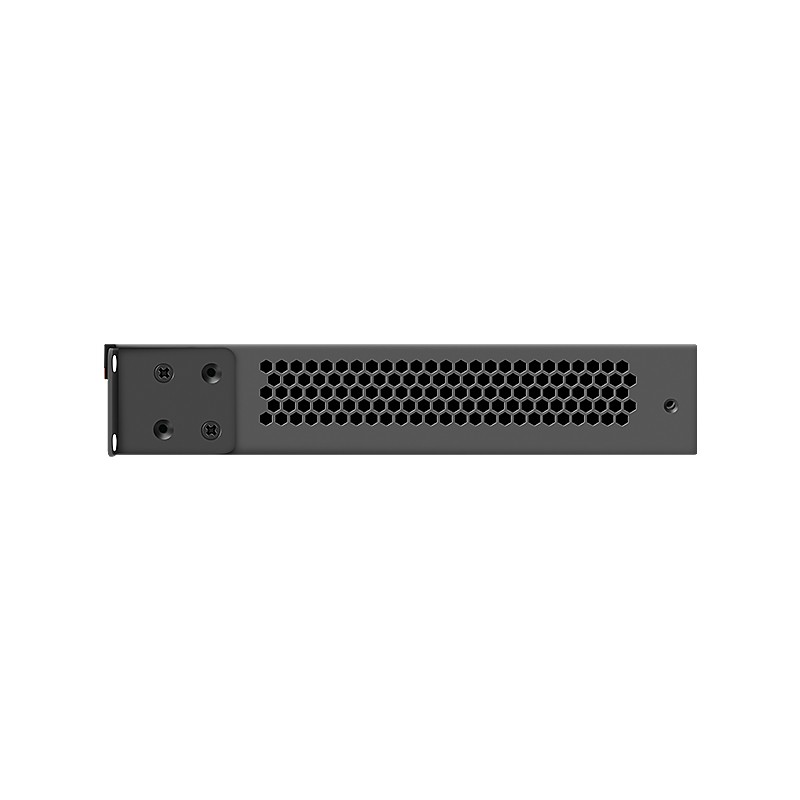

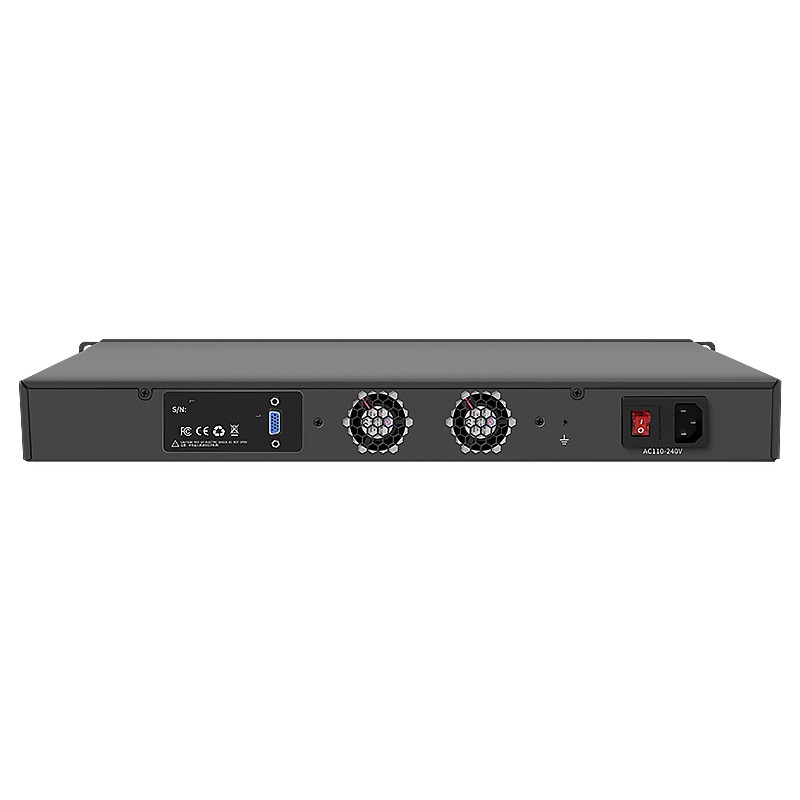

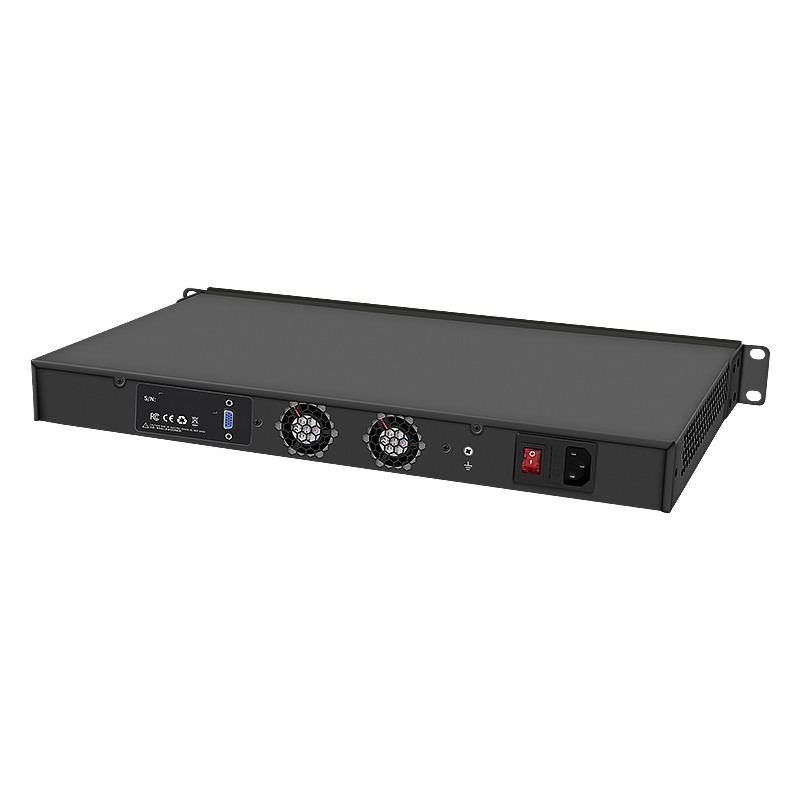

The BKHD 1U 1310NP-6L4S is a compact 1U rackmount server designed for network applications, providing an efficient and stable solution whether used for enterprise network management, efficient data transmission or data center deployment.

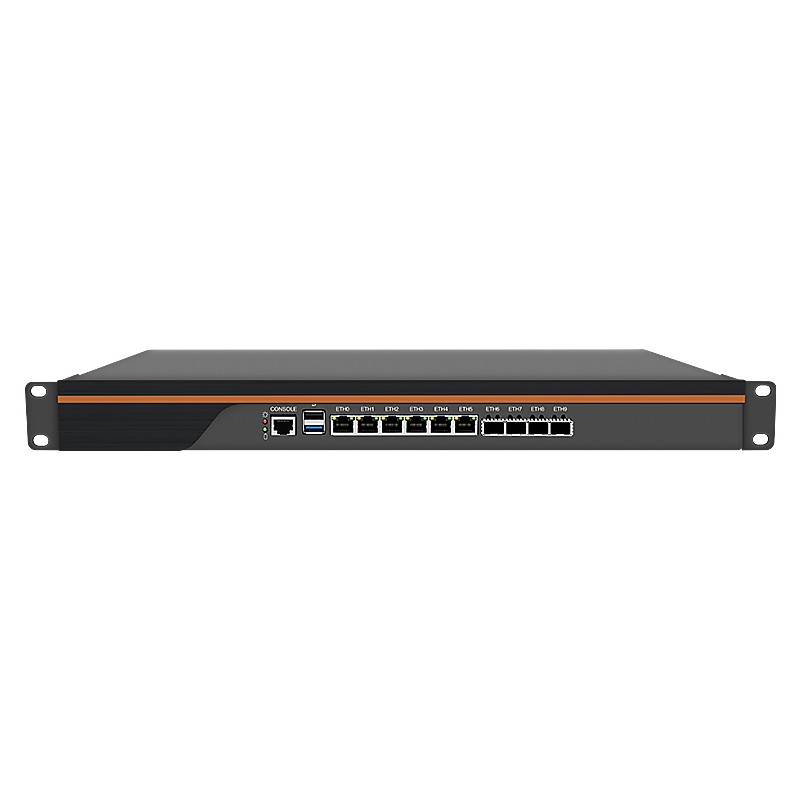

Network Ports: Equipped with 6x RJ45 Gigabit Ethernet ports with Intel i211 and i350 chipset, it provides stable and reliable network connection. 4x 10G SFP+ optical ports support high-speed fiber-optic connection, which is suitable for high-bandwidth and low-latency network applications.
Memory Slots: Provides 2x DDR4 SO-DIMM slots to ensure smooth data processing and excellent response speed for multitasking applications, suitable for data-intensive applications.
Storage Options: Supports 1x NVMe and 2x SATA 6.0Gb/s interfaces for high-speed, high-capacity storage configuration options.
Expansion Options: 1x PCIe x8 Gen3 slot provides additional support for expansion cards such as network expansion cards or storage controllers. 1x M.2 3052 slot and 1x mPCIe slot for wireless modules or other feature expansion.
Video output: Equipped with 1x VGA port to support basic video display for system management and monitoring.

Application Scenarios:

Networking and Communication Devices: For high-performance networking devices such as routers, firewalls, and switches that support a wide range of network protocols and applications.
Edge Computing and IoT: For edge computing and IoT applications, providing efficient data processing and network transmission.
Virtualization and Cloud Computing: For virtualization platforms and cloud computing environments to meet growing computing demands.
Content Delivery Network (CDN): For content delivery networks, supporting high-speed data transmission and efficient cache management.
Industrial and Embedded Applications: For industrial control and embedded applications that require high-performance computing and flexible network connectivity.
Enterprise Storage and Backup Solutions: For enterprise data storage and backup, providing flexible storage options and high-speed data access capabilities.
