1U 1264TI4 1L

Optional Processor

Intel N100 Cores:4 Threads:4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

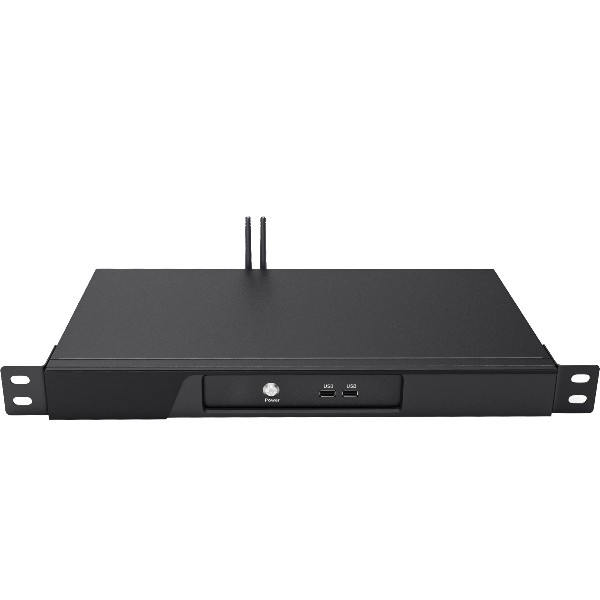

The BKHD 1U 1264TI4 1L is a low-power, 1U rack-mount industrial computer with an embedded Intel N100 processor, providing powerful computing for data-intensive industrial environments.

Supports up to 16GB of DDR4 memory, which improves multitasking efficiency and system responsiveness, ensuring stable system operation in high-load environments.

Offers 1 SATA interface and 1 M.2 2280 slot to meet various data storage requirements.

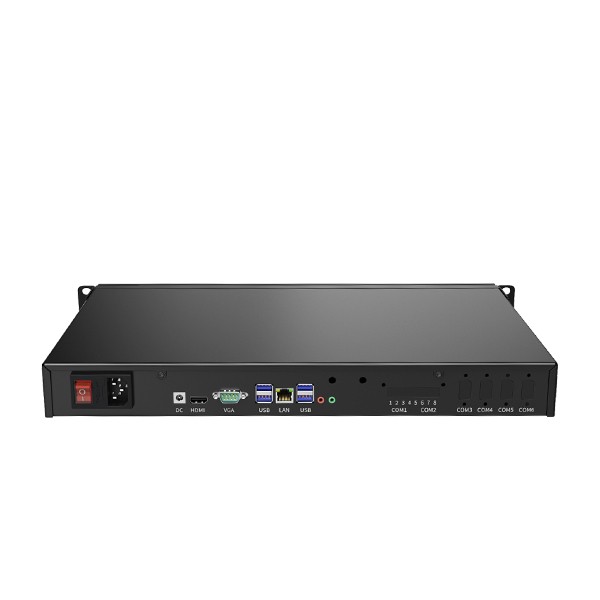

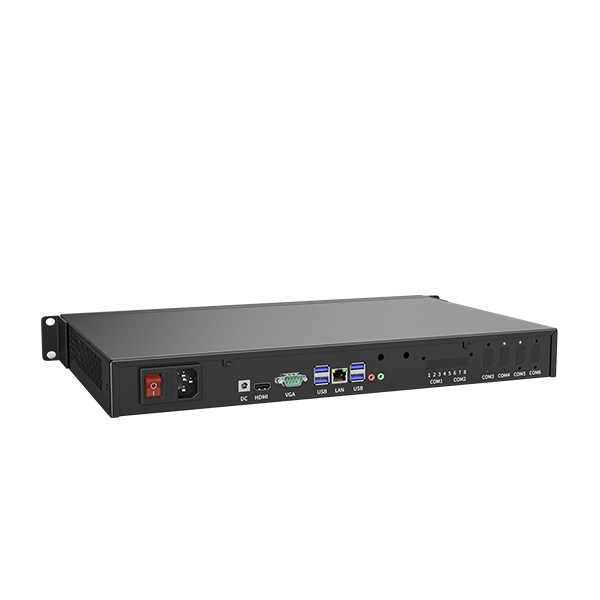

Offers VGA and HD dual display connectors as well as optional eDP or LVDS pins, suitable for applications such as digital signage and industrial monitoring that require multi-display solutions.

Provides up to 6 USB ports and 6 COM ports, of which COM1 and COM2 can support RS485/RS232 protocols and the rest support RS232. Easily connects to a wide range of peripherals including sensors, controllers and other industrial devices, making it an ideal choice for automation and data acquisition systems.

Provides 4 USB 3.0 ports and up to 6 USB 2.0 ports to ensure fast data transfer and support for a wide range of peripherals.

Built-in 1 mPCIe and 1 M.2 Key E expansion slot that can be used to add modules such as Wi-Fi, Bluetooth and LTE, providing flexible device connectivity and wireless communication capabilities.

Whether used for industrial automation, data acquisition, machine vision or embedded terminal applications, this device can provide excellent performance and reliable services, making it the best solution for your enterprise network and data management.
