1U 1168TI3 1L

Brand BKHD
Model 1U 1168TI3 1L
Chipset BKHD-1168-TI3
Network port 1*Realtek 8111 Gigabit Ethernet
Memory slot 1*DDR3L SO-DIMM
Storage slot 1*mSATA; 1*SATA
Expandable 1*mPCIe for WiFi/BT/4G module
Video output 1*VGA/1*HD
Power Adapter ATX 100~240V 50W

Optional Processor

Intel Core i3-4005U - 2 Cores 4 Threads

Intel Core i5-4200U - 2 Cores 4 Threads

Related Attachments (Click to download)

Product Specifications

BIOS file

Product Features:

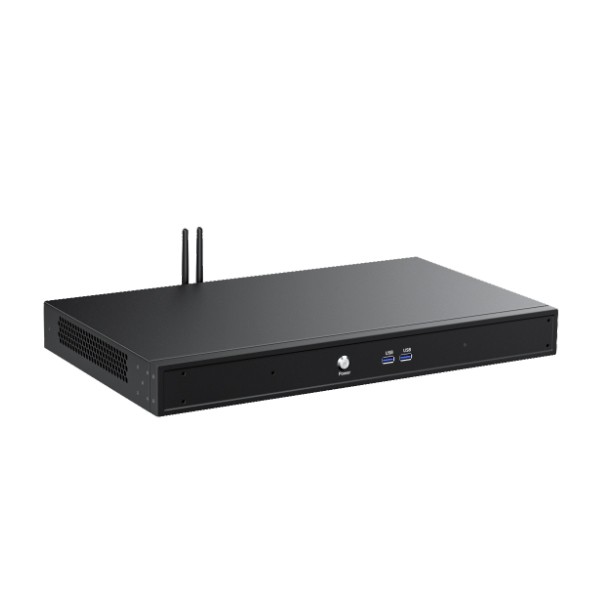

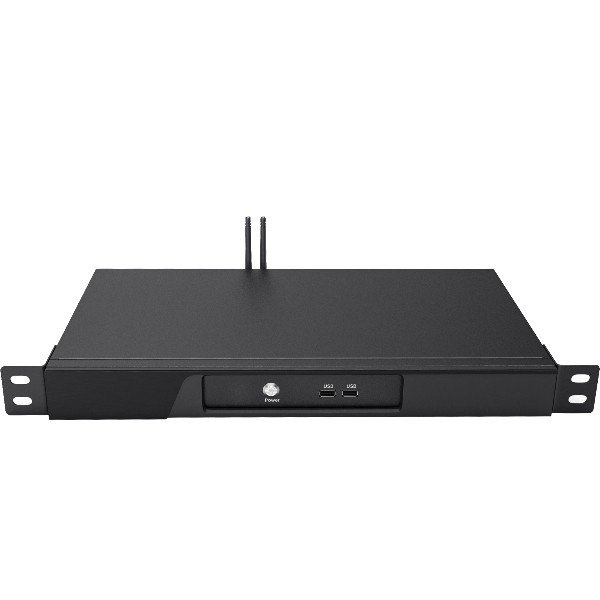

The BKHD 1U 1168TI3 1L is a low power 1U rack server designed for small and medium sized businesses in industrial control, data processing and multimedia applications.
Built-in 4th generation Core i3 and i5 processors are optional and provide excellent computing performance suitable for various compute-intensive tasks and data processing needs.
Supports DDR3 memory, which can be expanded up to 16GB, providing excellent performance support for multi-tasking of the device and ensuring stable operation of the system under heavy load environment.

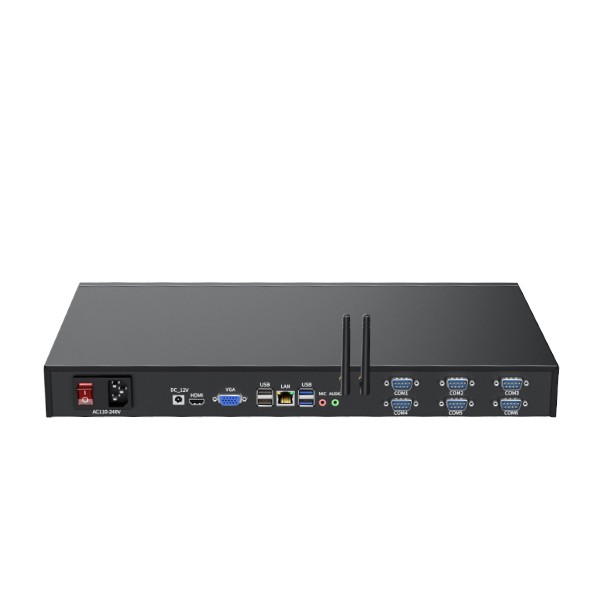

Provides 6 DB9 COM ports, 2 of which are optional RS232/RS485 and the rest are RS232. A wide range of communication interface support ensures flexible use of the device in industrial communication to meet the needs of different scenarios.
Provides 2 USB3.0 interfaces and up to 6 USB2.0 interfaces to ensure high-speed data transfer and wide peripheral connection support.
Built-in 1 mini-PCIe expansion slot, which can be used to expand modules such as Wi-Fi, Bluetooth and LTE, providing flexible device connectivity and wireless communication capabilities.
Provides 1 mSATA hard disk slot and 1 SATA hard disk slot to support different storage configurations and meet different data storage needs.
Supports VGA and HD video output interfaces to connect to high-definition display devices and meet multimedia and monitoring needs.
Adopts ATX power supply, supports 100~240V wide voltage input, provides stable and reliable power supply, and ensures the stability of long-term operation of the equipment.
