Product Features:

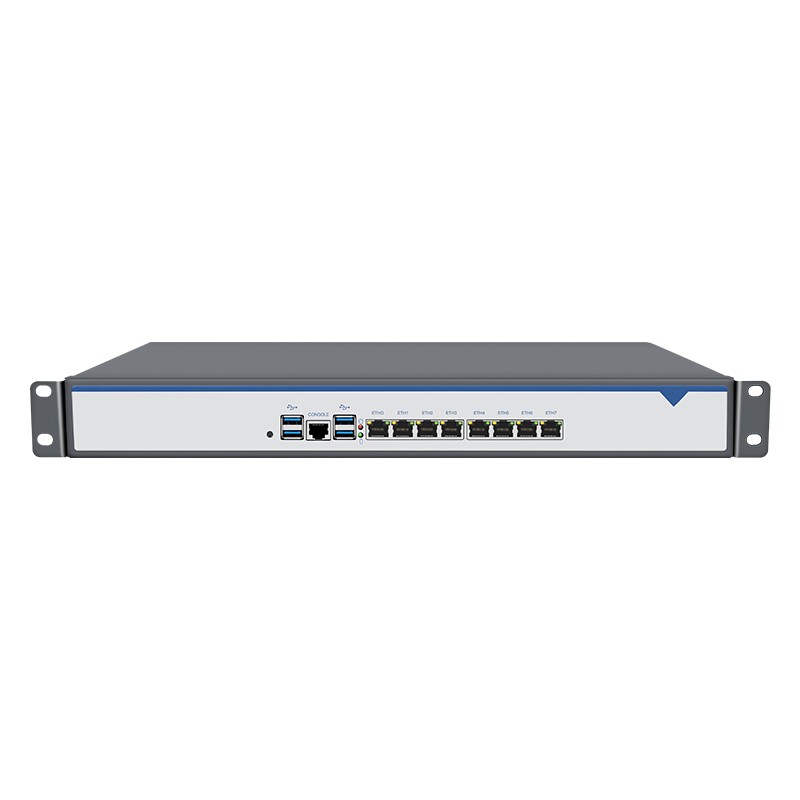

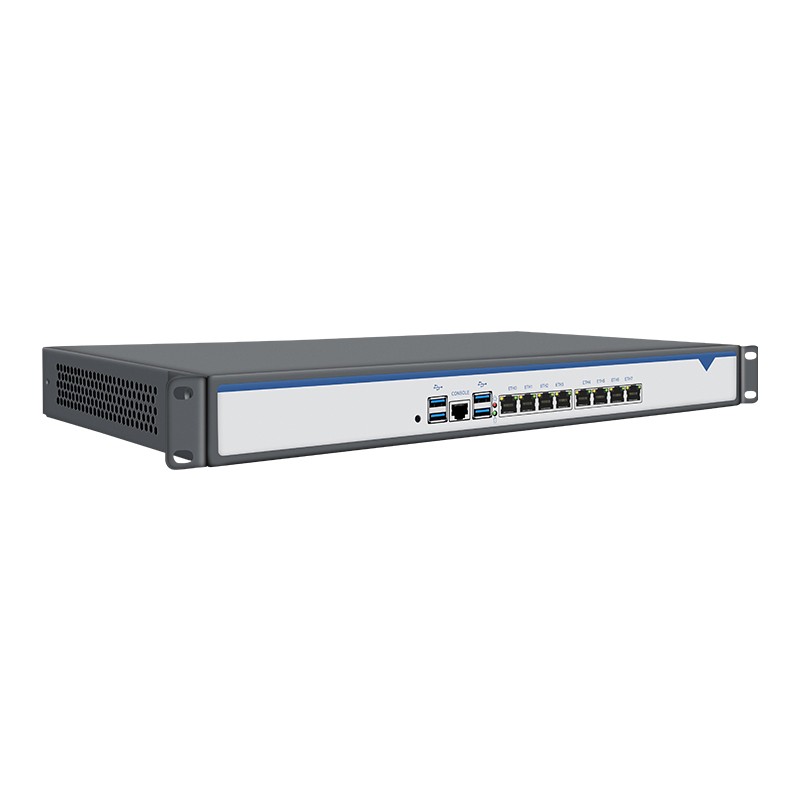

The 1U B760NP 8L supports the Raptor Lake series processors of the LGA1700 platform. With its Intel 7 manufacturing process and hybrid architecture design, it has both high performance and low energy consumption ratio.
Rich storage options: With 2x NVMe SSD interfaces and 4x SATA interfaces, you can easily add solid-state drives or chassis hard drives to meet the needs of high-speed solid-state drives and large-capacity mechanical hard drives.

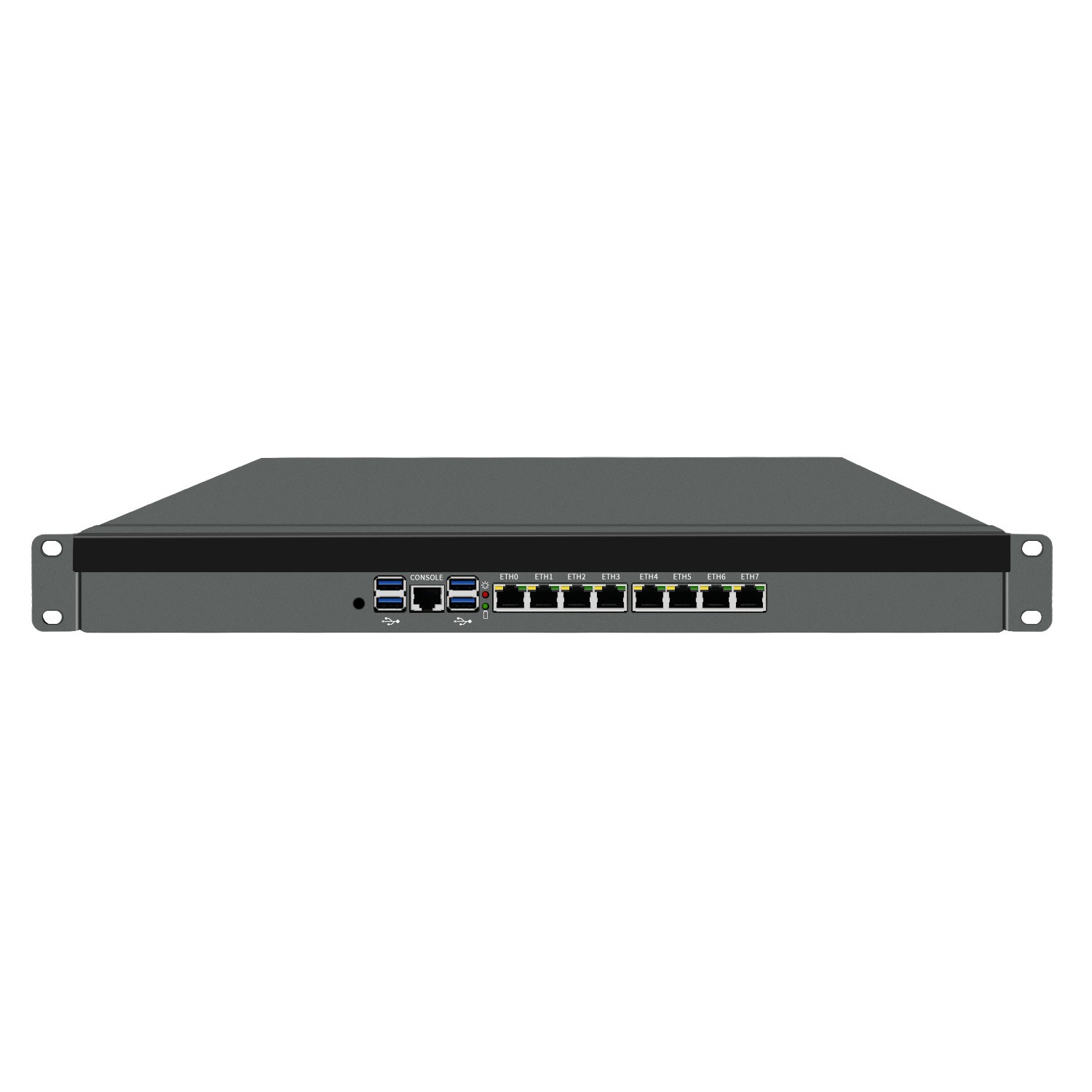

Efficient network connection: 8x Intel i226 2.5G network ports can meet the needs of enterprises and data centers with extremely high requirements for network speed.
Rich expansion interfaces: 1 PCIe x16 and 1x PCIe x4 slots support a variety of PCIe expansion cards, network cards or acceleration cards to meet the needs of different usage scenarios; 1x M.2 slot can be used for WiFi/4G/5G modules; 1x mPCIe slot can be used for WiFi/Bluetooth/4G modules; 1x mPCIe slot can be used for WiFi/Bluetooth modules.

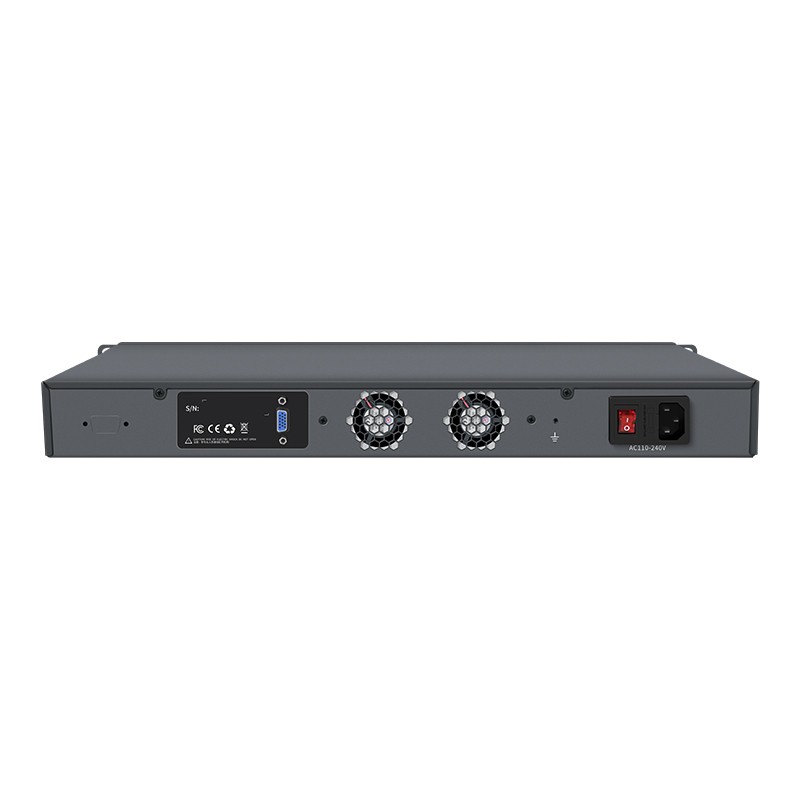

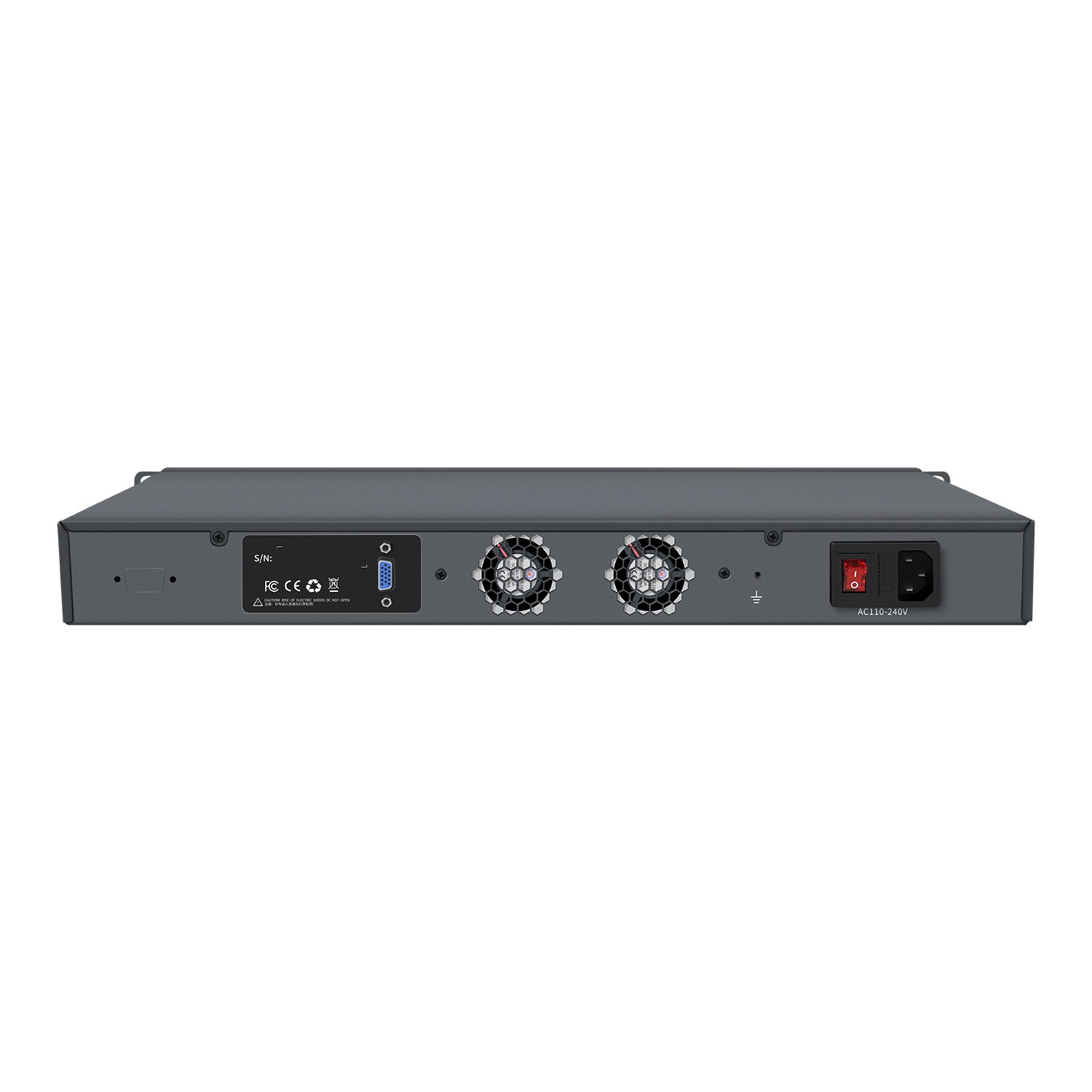

Powerful power supply: 24V ATX 100~240V IN, dual power supply module can be selected to achieve redundant power supply and ensure stable power supply.
Application scenarios:
Efficient workstation: suitable for building efficient workstations to handle large amounts of data and complex tasks.
Intensive network applications: deploy intensive network applications to ensure efficient operation of the network.
Enterprise-level firewall: build a reliable enterprise-level firewall to protect network security.
